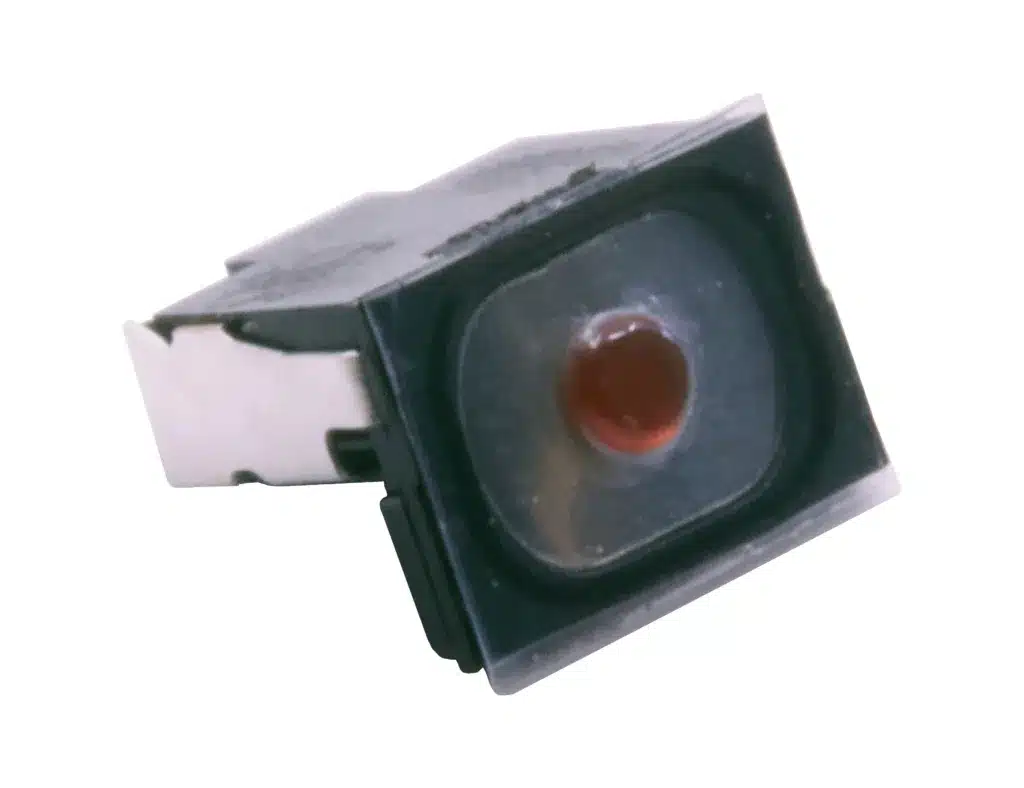

TL4110 Series Low Profile, SMT Edge Mount Right angle Tactile Switch

TL4110 Series Low Profile, SMT Edge Mount Right angle Tactile Switch

  • Edge mount, right angle (SMT) design
  • 2.0mm x 2.8mm
  • 0.65mm actuator height
  • 160gf operating force
  • Gull wing termination
  • 300,000 cycle life
  • 0.13mm travel
  • Silver contact material
  • -40°C to 85°C operating temperature
  • 20mA @ 15VDC
  • Tape and reel packaged

TL4110 Series Low Profile, SMT Edge Mount Right angle Tactile Switch

decoration Tl4110af160q

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Tl4110af160q

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

TL4110AF160Q

Detail Specifications

  • ELECTRICAL RATING: 20mA @ 15VDC
  • ELECTRICAL LIFE: 300,000 cycles
  • CONTACT RESISTANCE: 500mΩ Max
  • INSULATION RESISTANCE: 50MΩ Min @ 100VDC
  • DIELECTRIC STRENGTH: 250VAC for 1 Minute
  • OPERATING TEMPERATURE: -40°C to 85°C
  • TRAVEL: 0.13mm
  • CONTACT ARRANGEMENT: SPST
  • ACTUATION FORCE: 160gf
