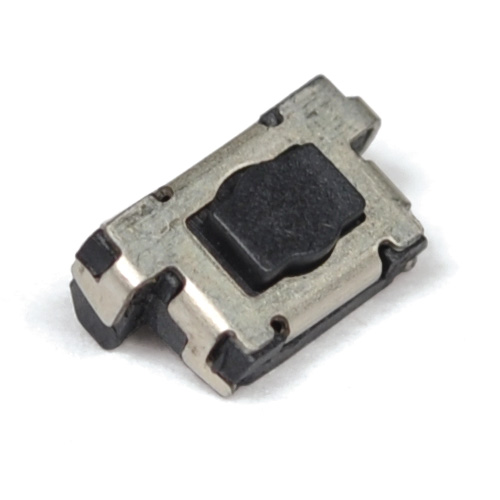

TL4100 Series Miniature, SMT Edge Mount Right Angle Tactile Switch
TL4100 Series Miniature, SMT Edge Mount Right Angle Tactile Switch
- Edge mount right angle (SMT) design
- 6.2mm x 2.5mm
- 2.0mm actuator height
- 120gf, 160gf, or 240gf operating force
- Gull wing or gull wing with through hole tabs termination
- Up to 1,000,000 cycle life
- 0.15mm travel
- Silver contact material
- -40°C to 85°C operating temperature
- 50mA @ 12VDC
- Tape and reel packaged
TL4100 Series Miniature, SMT Edge Mount Right Angle Tactile Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 50mA @ 12VDC
- LIFE EXPECTANCY: up to 1,000,000 Cycles
- CONTACT RESISTANCE: 100mΩ Max
- INSULATION RESISTANCE: 100MΩ Min @ 500VDC
- DIELECTRIC STRENGTH: 250VAC for 1 Minute
- OPERATING/STORAGE TEMPERATURE: -40°C to 85°C
- OPERATING FORCE: 120gf (1,000,000 cycles); 240gf (500,000 cycles)
- TRAVEL: 0.15mm ± 0.10mm
- FUNCTION: SPST; Off-(On), Momentary
