TL3901 Series Subminiature, Right Angle Edge Tactile Switch

TL3901 Series Subminiature, Right Angle Edge Tactile Switch

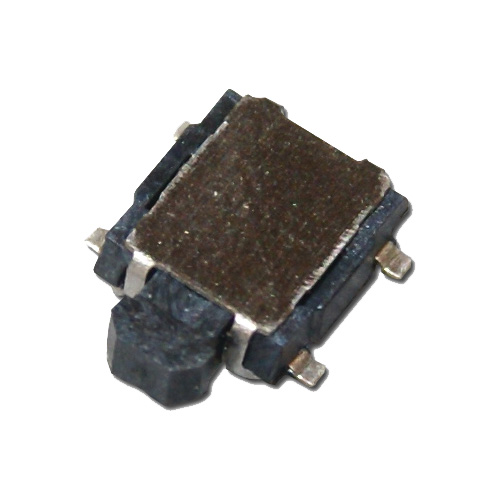

The TL3901 Series tactile switch offers unique features including right angle SMT, PC board edge mounting, subminiature package size, and tactile tape and reel packaging (2,000 pieces per reel). The TL3901 Series subminiature tactile switches offer an operating force of 180gf, gull wing termination for right angle, edge mounting, and silver contacts. It also comes with mounting bosses. These tact switches have life expectancies of 50,000 cycles and operate at temperatures ranging from -40 to 85°C. Applications for this right angle edge tactile switch include:

  • Telecommunications
  • Consumer electronics
  • Audio/visual
  • Medical instrumentation
  • Testing equipment
  • Computer peripherals

FEATURES

  • 4.3mm x 6.10mm tactile switch
  • 180 ± 50gf operating force
  • Right angle, surface mount design
  • Silver plated contacts

TL3901 Series Subminiature, Right Angle Edge Tactile Switch

decoration Tl3901 Series

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Tl3901 Series

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

TL3901AGQF180

Detail Specifications

ELECTRICAL RATING: 50mA @ 12VDC LIFE EXPECTANCY: 50,000 cycles CONTACT RESISTANCE: 500 mΩ Max. INSULATION RESISTANCE: 100 MΩ Min. at 500 VDC DIELECTRIC STRENGTH: 250 VAC for 1 min. OPERATING TEMPERATURE: -25°C to 70°C STORAGE TEMPERATURE: -30°C to 80°C OPERATING FORCE: 180 +80/-40 gf TRAVEL: 0.3mm ± 0.15mm CONTACT ARRANGEMENT: SPST, Normally Open
