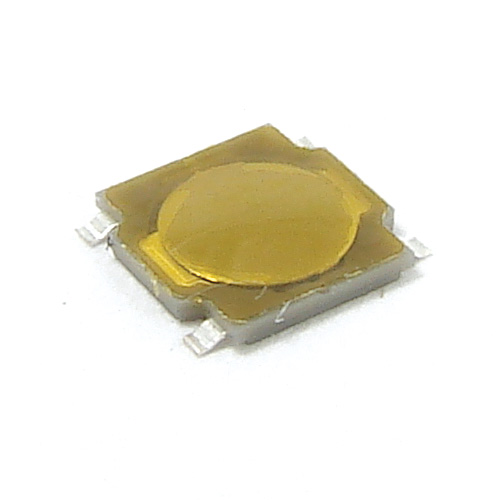

TL3315 Series Ultra Low Profile, SMT Tactile Switch
The TL3315 Series tactile switch features a 0.55mm profile and is surface mountable, making it great for applications that have a tight fit. The TL3315 tactile switches are available with three operating force options: 100gf, 160gf, or 250gf. The TL3315 Series tact switches measure 4.5mm x 4.5mm and operate at -20 to 70°C. The three different operating forces result in different life expectancies. The 100gf version of this tactile switch comes with the longest life expectancy: 1,000,000 cycles. The 160gf option gives this tact switch a life expectancy of 500,000 cycles, and the 250gf version results in a 200,000-cycle life expectancy. Applications for this ultra low profile tact switch include:
- Consumer electronics
- Audio/visual devices
- Medical devices
- Testing/instrumentation
- Telecommunications
- Computers/peripherals
FEATURES
- 4.5mm x 4.5mm tactile switch
- Ultra low profile with 0.55mm height
- 100 ± 30gf, 160 ± 50gf, 250 ± 50gf options
- Surface mount design
