TL3312 Series Miniature, Low Profile Tactile Switch

TL3312 Series Miniature, Low Profile Tactile Switch

The TL3312 Series is a miniature, low profile, surface mount tactile switch. The footprint measures 3.7mm x 3.7mm with an ultra-low profile of 0.35mm. Two actuation force options are available: 160gf and 235 gf. The operating life for 160gf version of the tact switch provides 500,000 cycles, while the 235gf version provides 50,000 cycles. These 50mA, 12VDC electrically rated tactile switches provide Single Pole, Single Throw (SPST) functions with 0.15mm of travel. These tact switches operate well in the elements, from -40 to 85°C. Applications for this low profile tact switch include:

  • Wearable electronics
  • Computer peripherals
  • Handheld devices
  • Smart home and consumer electronics
  • Telecommunications
  • Instrumentation

FEATURES

  • Ultraminiature 3.7mm x 3.7mm size
  • Surface mount termination
  • Very low profile of 0.35mm

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

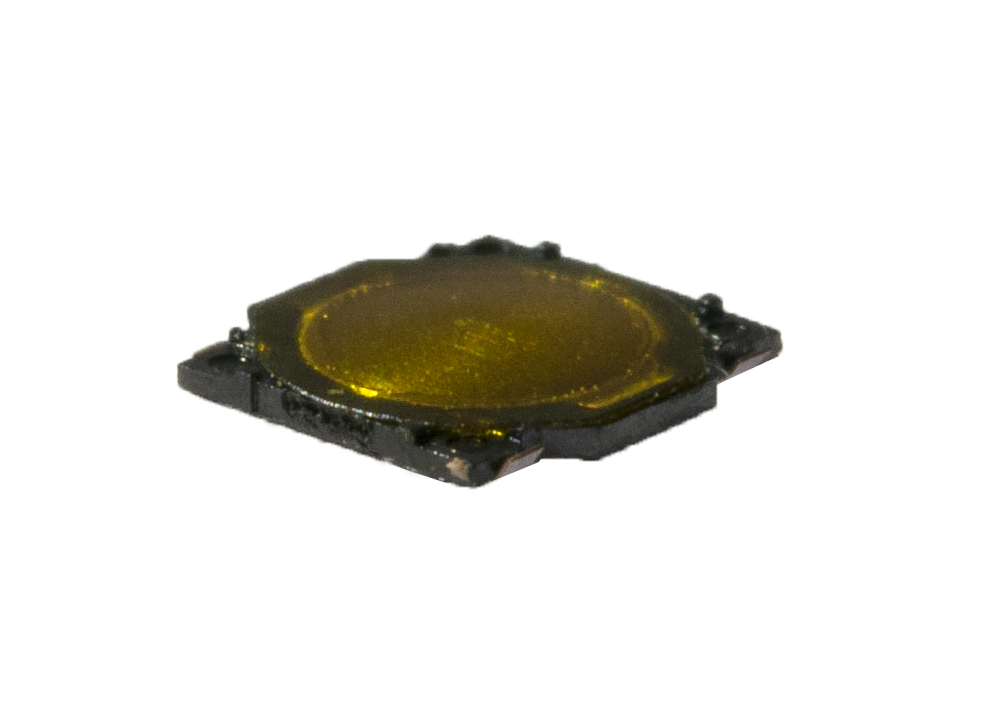

Tl3312 Tact

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

TL3312NF160Q

Detail Specifications

ELECTRICAL RATING: 50mA @ 12VDC CONTACT RESISTANCE: 100mΩ Max. initial INSULATION RESISTANCE: 100MΩ at 100VDC DIELECTRIC STRENGTH: 100VAC for 1 min. OPERATING LIFE: 500,000 Cycles for 160gf; 50,000 Cycles for 235gf OPERATING TEMPERATURE: -40°C to 85°C STORAGE TEMPERATURE: -40°C to 85°C OPERATING FORCE: 160gf 235gf TRAVEL: 0.15mm CONTACT ARRANGEMENT: SPST
