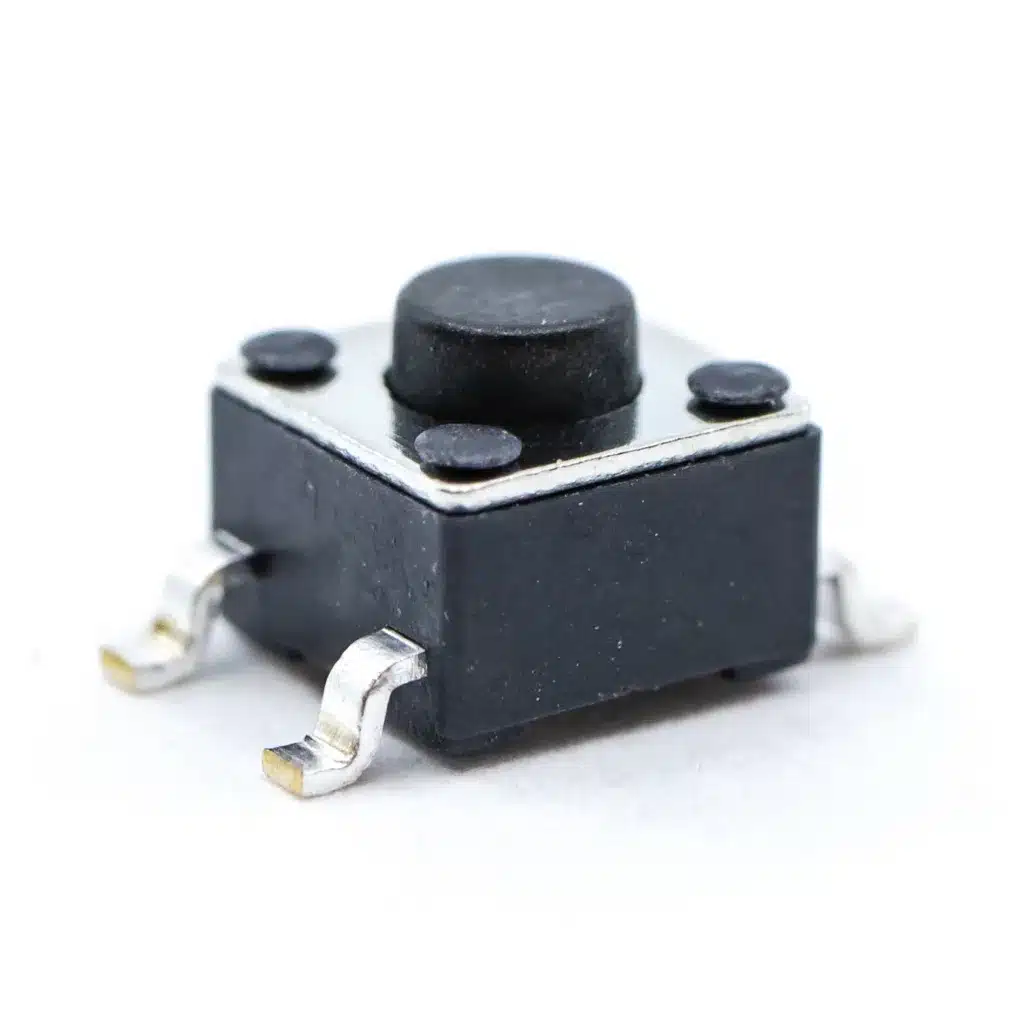

TL3305 Series SMT Tactile Switch
TL3305 Series SMT Tactile Switch
- Surface mount (SMT) design
- 4.5mm x 4.5mm
- 100gf, 160gf, 260gf, or 350gf operating force
- Multiple actuator height options
- Up to 500,000 cycle life
- Gull wing termination
- Silver contact material
- -40°C to 105°C operating temperature
- 50mA @ 12VDC
- Tape and reel packaging
TL3305 Series SMT Tactile Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 50mA @ 12VDC
- ELECTRICAL LIFE: 100gf &160gf: 500,000 cycles; 250gf: 200,000 cycles; 350gf: 50,000 cycles
- CONTACT RESISTANCE: 100mΩ Max
- INSULATION RESISTANCE: 100MΩ Min. @ 100VDC
- DIELECTRIC STRENGTH: 250VAC for 1 min.
- OPERATING TEMPERATURE: -40°C to 105°C
- STORAGE TEMPERATURE: -40°C to 105°C
- OPERATING FORCE: 100gf, 160gf, 260gf, 350gf
- TRAVEL: 0.20mm
- CONTACT ARRANGEMENT: SPST, normally open
