TL3304 Series Long Life Tactile Switch

TL3304 Series Long Life Tactile Switch

The TL3304 Series tactile switch features a life expectancy of up to 100,000 cycles and offers multiple actuator, actuation force, and termination options for surface mount applications. Actuators are 2.6mm and 3.4mm in length, actuation force options include 160gf or 260gf, and termination is available with gull wing or J-bend terminals with silver contact material. These tact switches come in tape and reel packaging for automated soldering processes and operate in temperatures ranging from -20 to 70°C. The TL3304 long life tact switches are ideal for applications like:

  • Audio/visual
  • Computer peripherals
  • Consumer electronics
  • Instrumentation
  • Medical equipment
  • Telecommunications

FEATURES

  • Up to 100,000 cycle life expectancy
  • Tape and reel packaging
  • Actuator options
  • Actuation force options
  • Termination options

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Tl3304af160qj

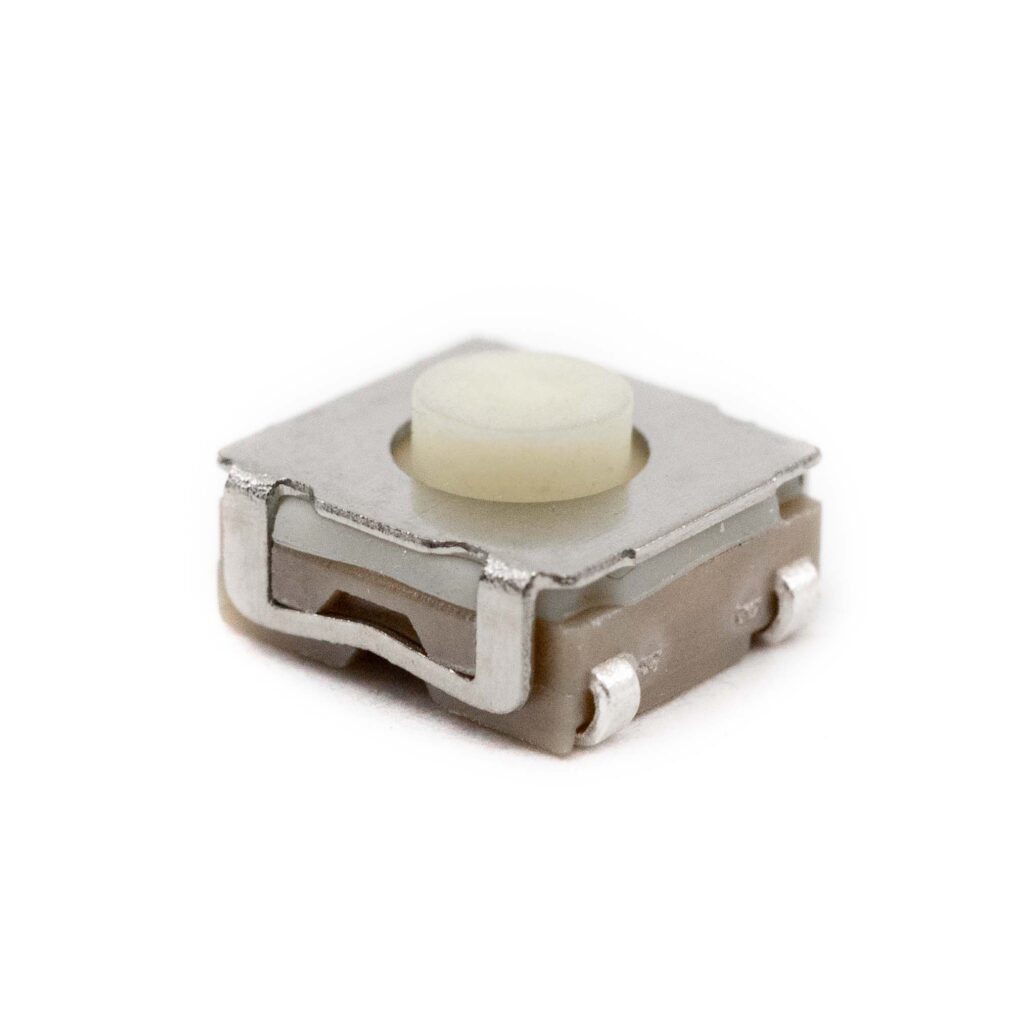

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

TL3304AF160QG
TL3304AF160QJ
TL3304AF260QJ

Detail Specifications

ELECTRICAL RATING: 50mA @ 12VDC CONTACT RESISTANCE: 100mΩ Max. (Initial) INSULATION RESISTANCE: 100MΩ Min. @ 500VDC DIELECTRIC STRENGTH: 250VAC for 1 Minute OPERATING TEMPERATURE: -20°C to 70°C TRAVEL: 0.25mm +0.2 / -0.1mm ACTUATION FORCE: 160gf ± 50gf; 260gf ± 50gf LIFE EXPECTANCY: 100,000 cycles FUNCTION: SPST, Off-(On) BOUNCE: Less than 5msec Max. CONTACT MATERIAL: Silver PACKAGING: Tape and Reel (Gull Wing): 1,500 pcs/reel; N actuator (J-bend): 1,900 pcs/reel; A actuator (J-bend): 1,600 pcs/reel
