TL3275 Series Illuminated, Right Angle SMT Tact Switch

TL3275 Series Illuminated, Right Angle SMT Tact Switch

The TL3275 Series tactile switch is a right angle, surface mount switch with 15 illumination options, including 10 dual-LED color combinations. The switch can also be ordered without illumination, and silver or gold contacts are also available. This is a Single-Pole, Single-Throw (SPST) switch with Off-(On) functionality and an electrical rating of 50mA, 12VDC. The TL3275 Series tactile switches are expected to last up to 100,000 cycles and operate in temperatures ranging from -40°C to 85°C. They are shipped in tape and reel packaging ready for automated installation, with 1,400 pieces on each reel. Possible applications for this illuminated, right angle SMT tact switch include, but are not limited to:

  • Audio/visual
  • Computer peripherals
  • Consumer electronics
  • Instrumentation
  • Medical equipment
  • Telecommunications


  • Right angle, surface mount design
  • Multiple LED options, including dual-LED
  • Up to 100,000 cycle life expectancy
  • Tape and reel packaging

TL3275 Series Illuminated, Right Angle SMT Tact Switch

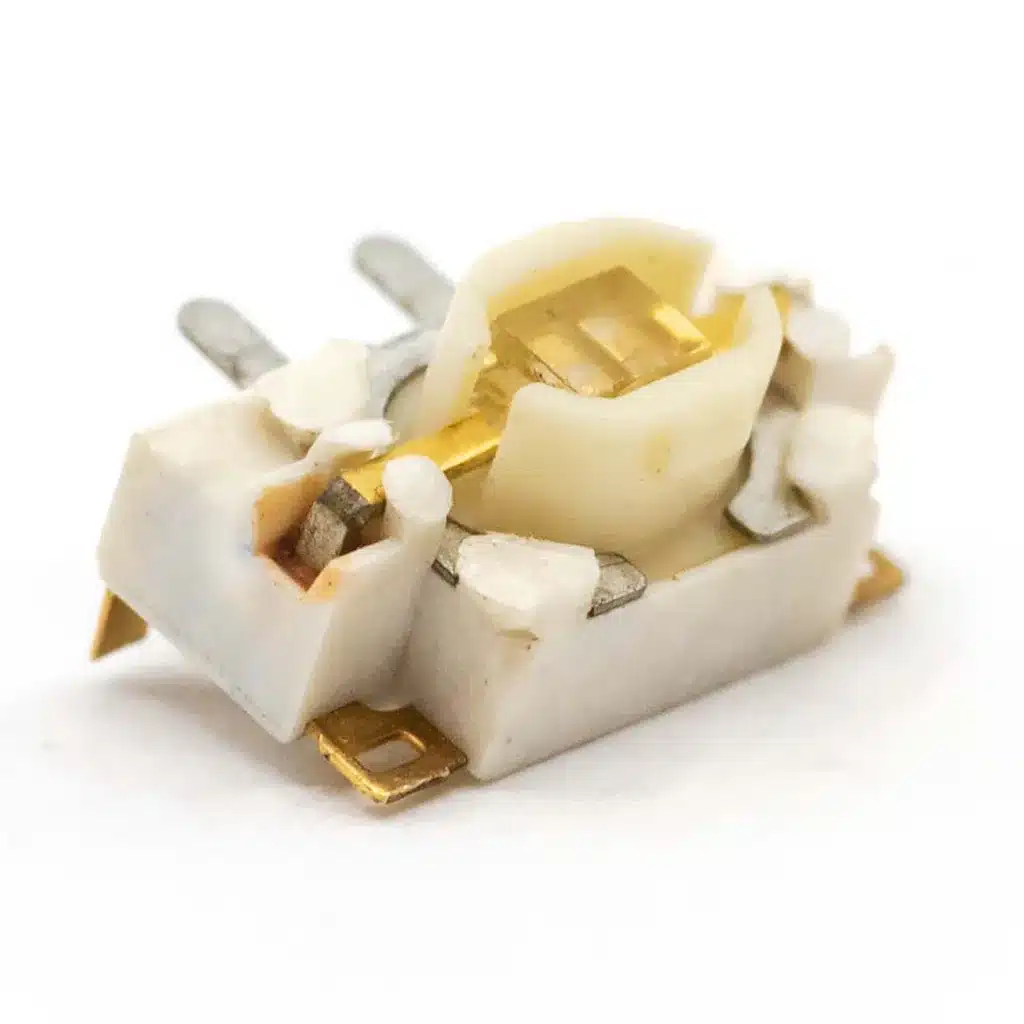

decoration Tl3275af160nr



Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:


* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

Detail Specifications

ELECTRICAL RATING: 50mA, 12VDC CONTACT RESISTANCE: 500mΩ Max. (Initial) INSULATION RESISTANCE: 100MΩ Min. at 100VDC DIELECTRIC STRENGTH: 250VAC for 1 Minute OPERATING/STORAGE TEMPERATURE: -40°C to 85°C OPERATING FORCE: 160gf ± 50gf OPERATING LIFE: 100,000 cycles TRAVEL: 0.20mm ± 0.10mm FUNCTION: SPST, Off-(On) BOUNCE: 10msec Max. CONTACT MATERIAL: Silver or Gold PACKAGING: Tape and Reel (1,400 pieces/reel)
