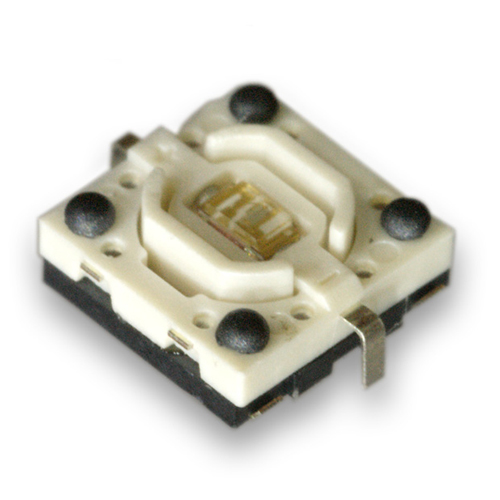

TL3215 Series Ultraminiature, Long Life, Illuminated SMT Tactile Switch
TL3215 Series Ultraminiature, Long Life, Illuminated SMT Tactile Switch
- Surface mount (SMT) design
- 4.9mm x 4.9mm
- Illuminated, with many LED color options
- 2.0mm actuator height, very low profile
- 1,000,000 cycle life
- 160gf or 250gf operating force
- Silver contact material
- -40°C to 85°C operating temperature
- 50mA @ 12VDC
- Tape and reel packaging
TL3215 Series Ultraminiature, Long Life, Illuminated SMT Tactile Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 50mA @ 12VDC
- ELECTRICAL LIFE: 1,000,000 Cycles
- MECHANICAL LIFE: 1,000,000 Cycles
- CONTACT RESISTANCE: 100mΩ Max. initial
- INSULATION RESISTANCE: 100M Ω @ 500VDC
- DIELECTRIC STRENGTH: 250VAC for 1 min.
- OPERATING TEMPERATURE: -40°C to 85°C
- STORAGE TEMPERATURE: -40°C to 85°C
- OPERATING FORCE: 160gf
- TRAVEL: 0.25mm
- CONTACT ARRANGEMENT: SPST
