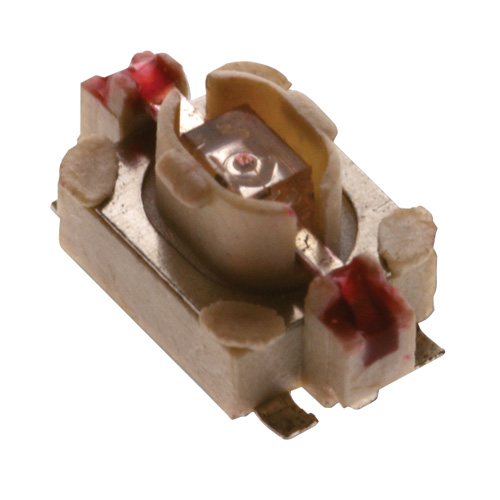

TL3210 Series Miniature, Illuminated SMT Tactile Switch
TL3210 Series Miniature, Illuminated SMT Tactile Switch
- Surface mount (SMT) design
- 5.6mm x 3.4mm
- Illuminated, with many LED color and bi-color options
- 3.12mm actuator height
- 160gf operating force
- 100,000 cycle life
- Silver contact material
- -20°C to 70°C operating temperature
- 50mA @ 12VDC
- Tape and reel packaging
TL3210 Series Miniature, Illuminated SMT Tactile Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 50mA @ 12VDC
- LIFE EXPECTANCY: 100,000 Cycles
- CONTACT RESISTANCE: 500mΩ Max.
- INSULATION RESISTANCE: 100MΩ Min. @ 100VDC
- DIELECTRIC STRENGTH: 250VAC for 1 min.
- OPERATING TEMPERATURE: -20°C to 70°C
- STORAGE TEMPERATURE: -30°C to 80°C
- OPERATING FORCE: 160 gf ± 50 gf
- TRAVEL: 0.2mm ± 0.1mm
- CONTACT ARRANGEMENT: SPST, Normally Open
