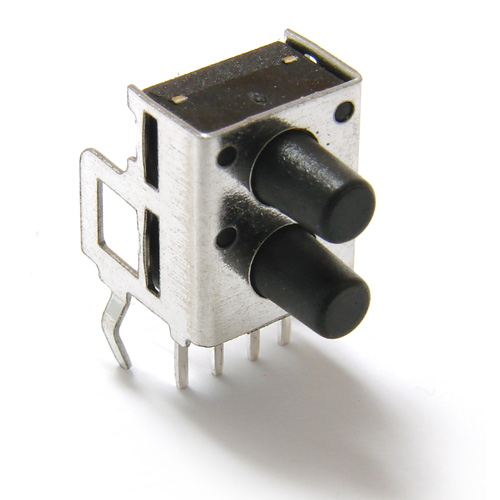

TL2243 Series Double Stacked, Low Profile Tactile Switch

The TL2243 Series tactile switches are low profile, double stacked tact switches that can save space on the PC board. They have a sharp tactile feel, and the tactile buttons have 0.25mm of travel. The TL2243 Series tactile switch has right angle, through-hole mounting design. These space-saving tactile switches are operational at temperatures ranging from -20°C to 70°C. The TL2243 Series tact switch has a life expectancy of 30,000 cycles. Applications for this double stacked, low profile tact switch include:

  • Telecommunications
  • Medical
  • Testing and instrumentation
  • Consumer electronics
  • Audio/visual
  • Computers

FEATURES

  • 7.3mm x 9.1mm tactile switch
  • 180 ± 50gf operating force
  • Dual actuation
  • Right angle, through-hole mounting design

TL2243 Series Double Stacked, Low Profile Tactile Switch

decoration Tl2243 Series

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Tl2243 Series

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

TL2243

Detail Specifications

ELECTRICAL RATING: 50mA @ 12VDC LIFE EXPECTANCY: 30,000 Cycles CONTACT RESISTANCE: 100mΩ Max INSULATION RESISTANCE: 100MΩ Min. @ 100VDC DIELECTRIC STRENGTH: 250VAC ACTUATION FORCE: 180gf ± 50gf OPERATING TEMPERATURE: -20°C to 70°C TRAVEL: 0.25mm
