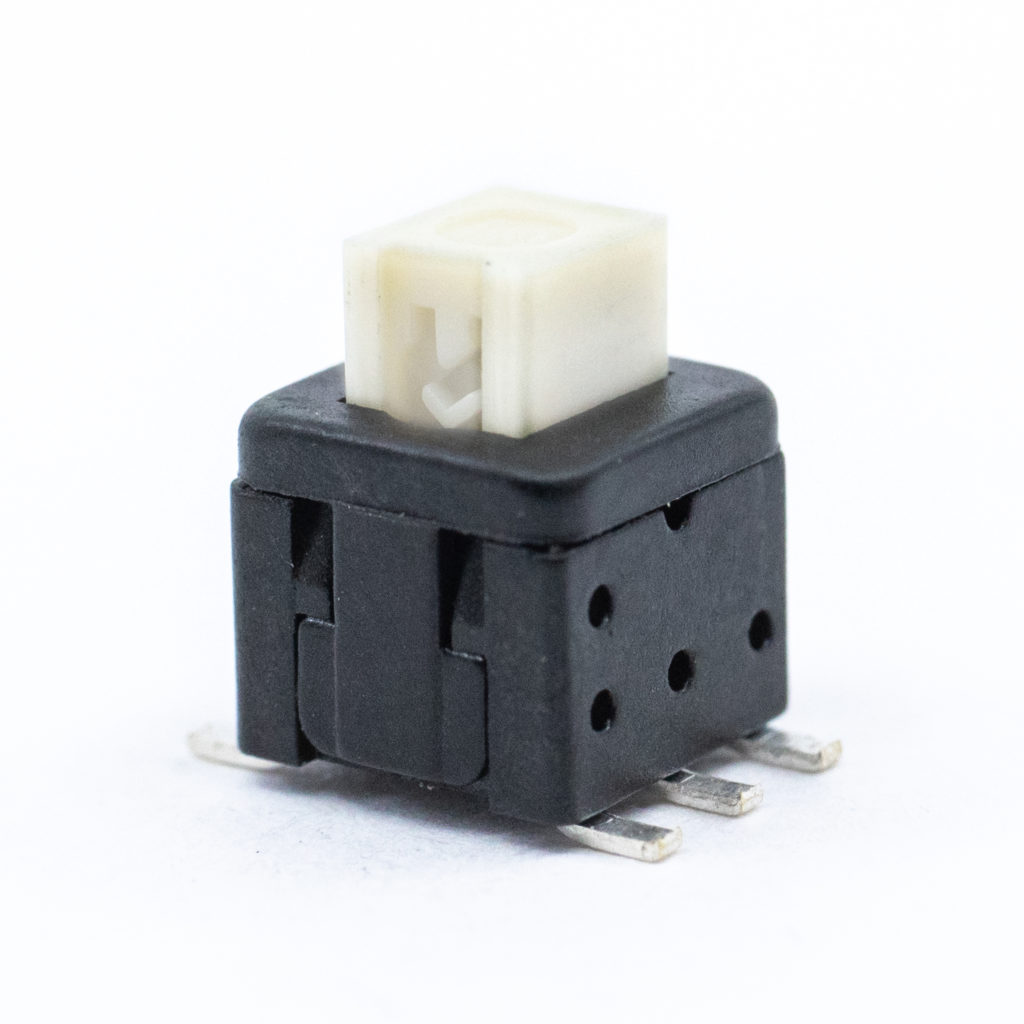

TL2233 Series Subminiature Pushbutton Switch
TL2233 Series Subminiature Pushbutton Switch
- Wave solderable
- Electrical Rating: 100mA @ 30VDC
- 5.80mm x 7.90mm size
- Surface mount design
- Long electrical life of 10,000 cycles
- DPDT, momentary pushbuttons
- Travel: 1.90mm
- Actuation Force: 250 grams
TL2233 Series Subminiature Pushbutton Switch
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 100mA @ 30VDC
- ELECTRICAL LIFE: 10,000 Cycles
- CONTACT ARRANGEMENT: DPDT (Momentary)
- CONTACT RESISTANCE: 100m W Max. (Initial)
- INSULATION RESISTANCE: 100MW @100 VDC
- DIELECTRIC STRENGTH: 250VAC for 1 minute
- OPERATING TEMPERATURE: -10°C to 60°C
- OPERATING FORCE: 250gf ± 80gf
- TRAVEL: 1.90mm
