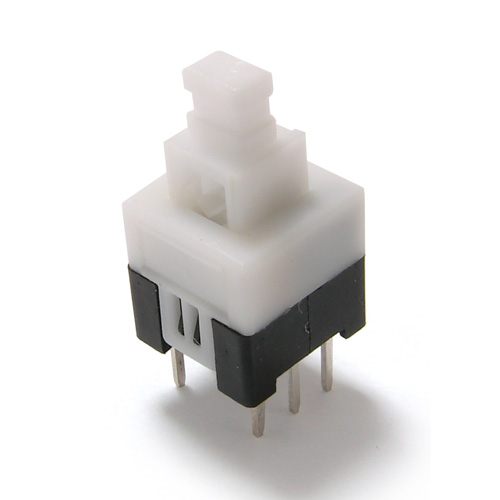

TL2230 Series Subminiature Pushbutton Switch
The TL2230 Series subminiature switches are available as either maintained (latching) or momentary pushbuttons with long travel of 1.8mm. The TL2230 Series subminiature pushbutton switch features a Double Pole, Double Throw (DPDT) circuit and two operating force options: 140gf or 230gf. Included in this series are the TL2201, TL2202, TL2230, TL2285, and TL4201 pushbutton switches. Applications for these subminiature pushbuttons include:
- Telecommunications
- Networking
- Computers/servers
- Performance audio
- Instrumentation
- Low power on/off designs
- External hard drives and modems
FEATURES
- 100mA, 30VDC electrical rating
- PC board mounting design
- DPDT, maintained (latching) or momentary pushbuttons
