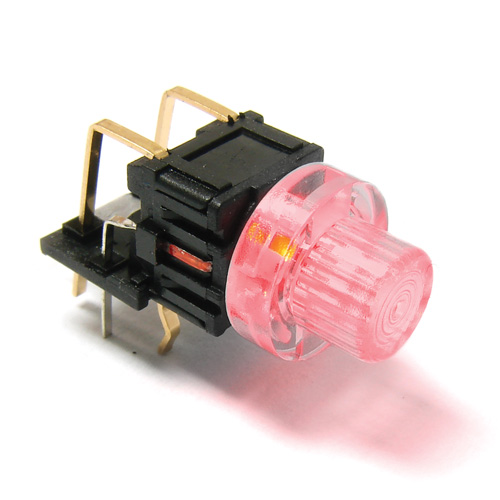

TL1250 Series Illuminated, Through Hole Right Angle Tactile Switch
TL1250 Series Illuminated, Through Hole Right Angle Tactile Switch
- Through hole right angle mounting design
- 8.3mm x 10.3mm
- Illuminated, with many LED color options
- Additional round cap option
- 10.7mm actuator height (with cap)
- 120gf, 180gf, or 280gf operating force
- 50,000 cycle life
- Silver or gold contact material
- -20°C to 70°C operating temperature
- 50mA @ 12VDC
TL1250 Series Illuminated, Through Hole Right Angle Tactile Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 12VDC @ 50mA
- MECHANICAL LIFE: 50,000 Cycles
- CONTACT RESISTANCE: 100mΩ @ 5VDC Initial Max.
- INSULATION RESISTANCE: 100MΩ Min. @ 100V
- DIELECTRIC STRENGTH: 250VAC
- FORCE: 120 ± 60gf; 180 ± 60gf; 280 ± 70gf
- TRAVEL: 0.25mm ± 0.1mm
- BOUNCE: 5m Second Max.
- OPERATING TEMPERATURE: -20°C to 70°C
