TL1016 Series Micro-miniature, Right Angle Tactile Switch

TL1016 Series Micro-miniature, Right Angle Tactile Switch

The TL1016 Series micro-miniature right angle tactile switches measure just 3.5mm x 3.55mm and feature a life expectancy of up to 100,000 cycles. They operate in and can be stored at temperatures ranging from -40 to 85°C. The TL1016 Series surface mount tact switch comes with multiple actuation force options, a ground terminal option, and a mounting boss option. It will arrive in tactile tape and reel packaging with 3,500 pieces per reel for automated soldering. Possible applications for these micro-miniature tact switches include:

  • Audio/visual
  • Computer peripherals
  • Consumer electronics
  • Instrumentation
  • Medical equipment
  • Telecommunications

FEATURES

  • 3.55 x 3.5mm tactile switch
  • 160gf or 220gf operating force options
  • Right angle, surface mount design
  • Up to 100,000 cycle life expectancy
  • Ground terminal option

TL1016 Series Micro-miniature, Right Angle Tactile Switch

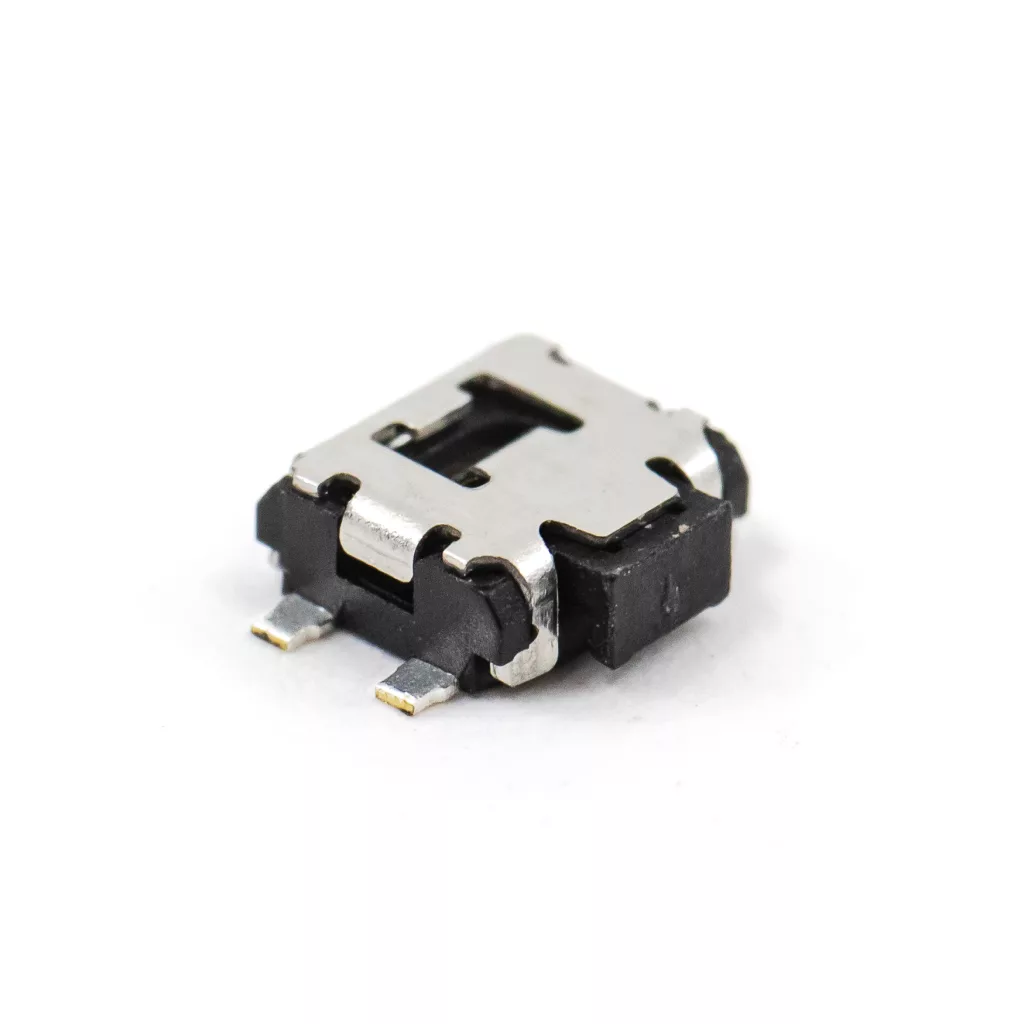

decoration Tl1016abf160qg

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Tl1016abf160qg

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

ELECTRICAL RATING: 50mA @ 12VDC CONTACT RESISTANCE: 500mΩ Max. (Initial) INSULATION RESISTANCE: 100MΩ Min. @ 500VDC DIELECTRIC STRENGTH: 250VAC for 1 Minute LIFE EXPECTANCY: 100,000 cycles OPERATING/STORAGE TEMPERATURE: -40 to 85°C TRAVEL: 0.20mm OPERATING FORCE: 160gf; 220gf FUNCTION: SPST, Off-(On) BOUNCE: 10msec Max. CONTACT MATERIAL: Silver PACKAGING: Tape and Reel (3,500 pcs/reel)
