TL1014 Series Subminiature, Right Angle Tactile Switch

TL1014 Series Subminiature, Right Angle Tactile Switch

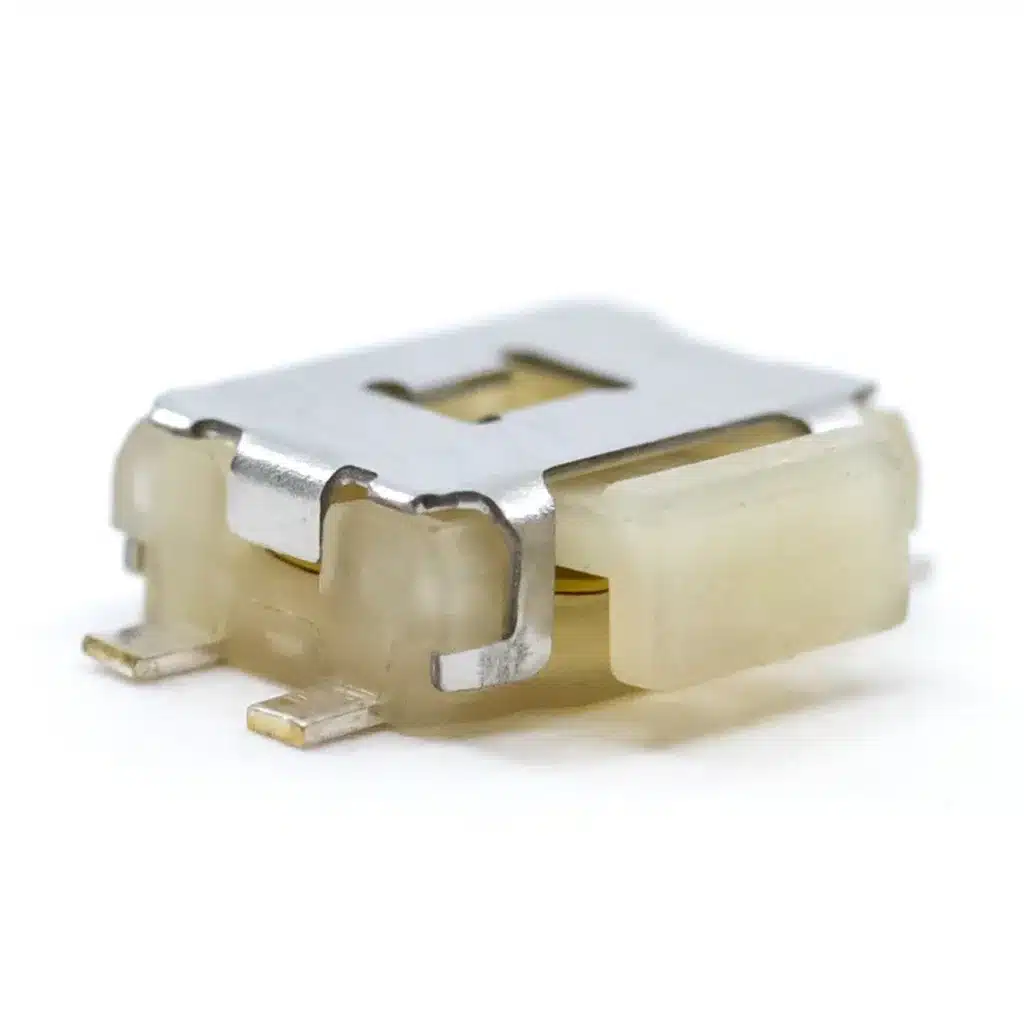

The TL1014 Series subminiature tactile switch is side mount actuated. This right angle, SMT mounted tact switch comes in tape and reel packaging for easy insertion into your design. It has gull wing termination and measures 4.7mm x 3.5mm. The TL1014 right angle tactile switches are available with or without boss (locating pin) and have a life expectancy of up to 200,000 cycles (100,000 cycles for the 220gf option). These tact switches operate and can be stored in temperatures ranging from -40 to 85°C. Applications for the TL1014 Series subminiature tact switch include:

  • Telecommunications
  • Consumer electronics
  • Audio/visual
  • Medical
  • Computer servers
  • Testing/instrumentation

FEATURES

  • Long life expectancy of up to 200,000 cycles
  • 160 or 220 gram force options
  • Right angle, surface mount design
  • Silver plated contacts

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Tl1014 Series

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

TL1014AF160QG
TL1014BF160QG

Detail Specifications

ELECTRICAL RATING: 12VDC @ 50mA LIFE EXPECTANCY: 160gf: 200,000 cycles; 220gf: 100,000 cycles CONTACT RESISTANCE: 100mΩ Max. INSULATION RESISTANCE: 100MΩ Min. @ 500V DIELECTRIC STRENGTH: 250VAC ACTUATOR FORCE:  160gf, 220gf OPERATING/STORAGE TEMPERATURE: -40°C to 85°C TRAVEL: 160gf: 0.25mm; 220gf: 0.30mm / MATERIALS / HOUSING: Nylon 46 ACTUATOR: Nylon 46 COVER: Stainless Steel CONTACT DOME: Stainless Steel TERMINALS: Silver Plated Brass
