RT3301 Series Reverse Surface Mount Tact Switch

RT3301 Series Reverse Surface Mount Tact Switch

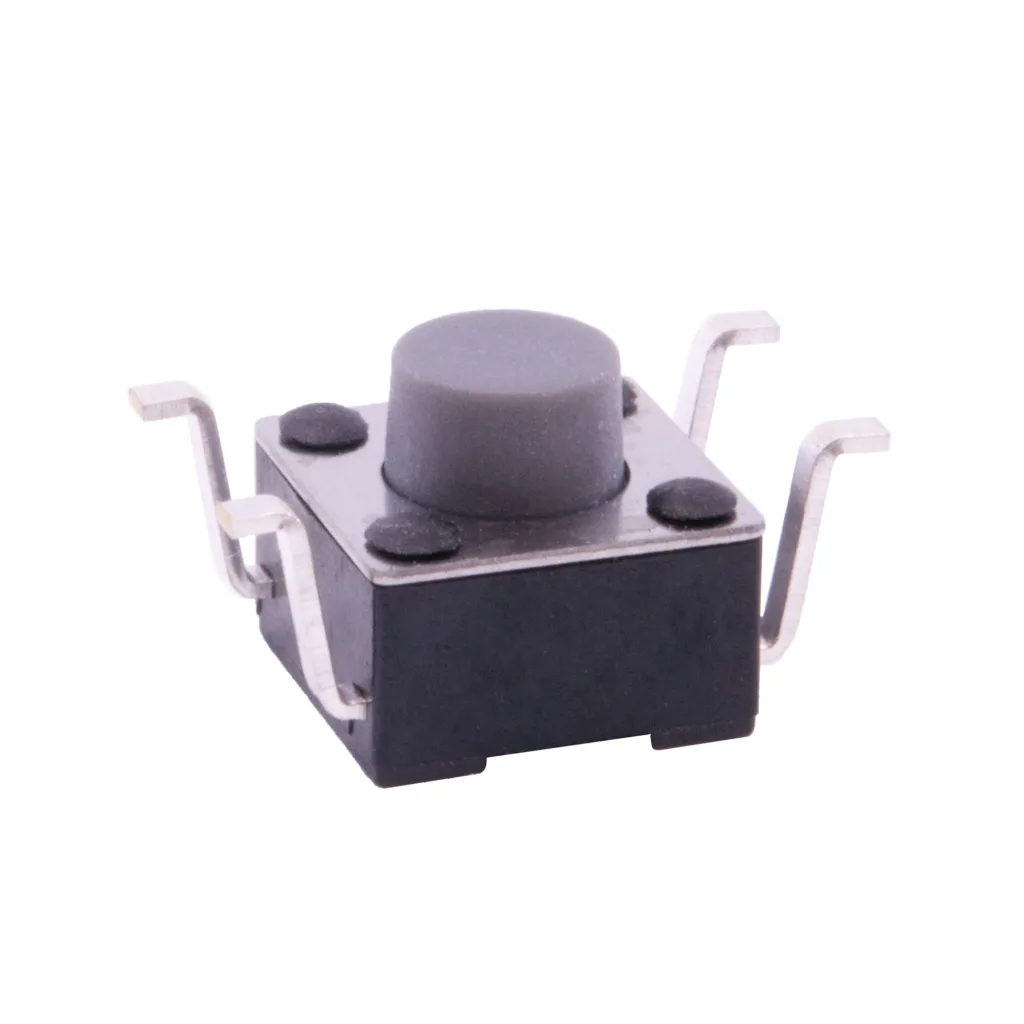

The RT3301 Series is a top-actuated, reverse surface mount tact switch that measures 6mm x 6mm in size and features a long life expectancy of up to 100,000 cycles. There are 4 actuation force options, and the switch has a Single-Pole, Single-Throw (SPST) circuit with Off-(On) functionality. The RT3301 Series reverse SMT tactile switch is also great in the elements, operating in temperatures ranging from -40° to 85°C. This reverse surface mount tact switch has an electrical rating of 50mA @ 12VDC and is delivered in tape and reel packaging for automated installation, with 1,000 pieces per reel. Applications for the RT3301 Series reverse surface mount tactile switch include but are not limited to:

  • Audio/visual
  • Computer peripherals
  • Consumer electronics
  • Instrumentation
  • Medical equipment
  • Telecommunications

  • Top actuated, reverse surface mount design
  • 6.00mm x 6.00mm size
  • 100, 160, 260, or 320 gram actuation force
  • Up to 100,000 cycle life expectancy
  • Tape and reel packaging

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Best tact switches 2024: RT3301

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

ELECTRICAL RATING: 50mA, 12VDC CONTACT RESISTANCE: 100mΩ Max. (Initial) INSULATION RESISTANCE: 100MΩ Min. at 100VDC DIELECTRIC STRENGTH: 250VAC for 1 Minute LIFE EXPECTANCY: 100,000 cycles OPERATING TEMPERATURE: -40°C to 85°C TRAVEL: 0.25mm +0.2mm / - 0.1mm CONTACT MATERIAL: Silver OPERATING FORCE: 100, 160, 260, or 320gf ± 50gf FUNCTION: SPST, Off-(On) PACKAGING: Tape and Reel; 1,000 pieces/reel
