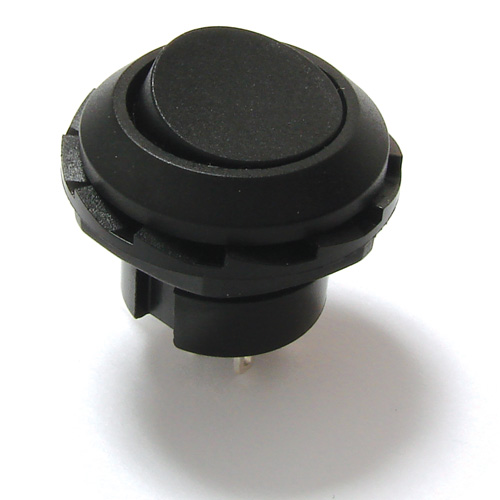

RR3130 Series Round, Power Rocker Switch
RR3130 Series Round, Power Rocker Switch
- 18.2mm panel cutout
- 10A 125VAC, 6A 250VAC; UL, cUL
- 1 or 2 pole; momentary or latching function
- Panel mount threaded body with nut design
- Solder termination
- Housing and actuator color options
- Actuator marking options
- Non-illuminated
- 0°C to 65°C operating temperature
RR3130 Series Round, Power Rocker Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 10A @ 125VAC; 6A @ 250VAC
- MECHANICAL LIFE: 20,000 Cycles
- ELECTRICAL LIFE: 6,000 Cycles
- CONTACT RESISTANCE: 50mΩ
- INSULATION RESISTANCE: 100MΩ Min. @ 500VDC
- DIELECTRIC STRENGTH: 1500V Min. for 1 Minute
- TERMINATION: Solder Lug, Silver-Plated
- OPERATING TEMPERATURE: 0°C to 65°C
- STORAGE TEMPERATURE: -25°C to 85°C
