KAS Series Slide DIP Switch

KAS Series Slide DIP Switch

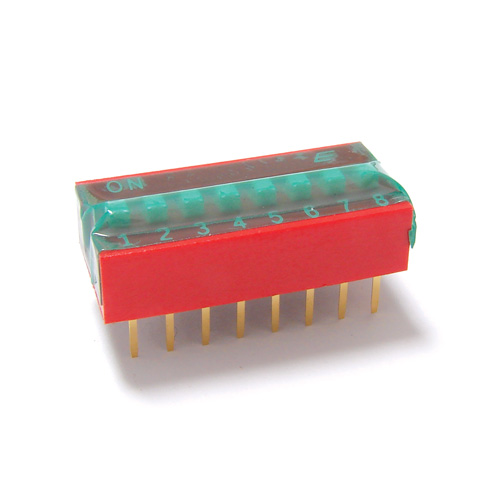

The KAS Series slide DIP switches are available with vertical PC board pin or right angle PC board pin termination. Available with between 1 and 12 actuator positions, and with extended or recessed actuators, these slide DIP switches arrive in tube packaging. The KAS Series slide DIP switch features an optional top seal designed to withstand wave soldering and board washing. The contacts have an initial electrical rating of 25mA, 24VDC, and a carry current rating of 100mA, 50VDC. This slide DIP switch operates in temperatures ranging from -40 to 85°C, making it ideal for harsh environments. PLEASE NOTE: The right angle PC pin termination option is not available with the recessed actuator. It is only available with the extended actuator. Applications for these slide DIP switches include but aren't limited to:

  • Garage door openers
  • Computer peripherals
  • Consumer electronics
  • Instrumentation
  • Telecommunication
  • Medical equipment


FEATURES

  • Through-hole, PCB pin mount vertically or at a right angle
  • From 1 to 12 positions
  • Top tape seal optional
  • Tube packaging

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

KAS Series Slide DIP Switch

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Detail Specifications

ELECTRICAL RATING: Switch: 25mA @ 24VDC; Carry: 100mA @ 50VDC OPERATING LIFE: 2,000 Make-and-Break Cycles, Each Circuit CONTACT RESISTANCE: Initial: 50mΩ Typical at 2-4VDC, 100mA; After Life: 100mΩ Typical at 2-4VDC, 100mA INSULATION RESISTANCE: 100MΩ Min. at 500VDC OPERATING FORCE: 1000gf Max. DIELECTRIC STRENGTH: 500V RMS Min. at Sea Level Between Adjacent Terminals TRAVEL: 2.00mm Typical OPERATING/STORAGE TEMPERATURE: -40°C to 85°C VIBRATION: To MIL-STD-202F, Method 201 A SHOCK: To MIL-STD-202F, Method 213B, Condition A CAPACITANCE: 5pf Max. Between Adjacent Terminals SWITCH FUNCTION: SPST, 1 through 12 Positions (Except Position 11) / SOLDERING RECOMMENDATION / WAVE: 500°F (260°C) for 5s Max. HAND: 30W Soldering Iron at 608°F (320°C) for 2s Typical *Keep all switches in the "OFF" position during soldering and cleaning process.
