A high-current pushbutton switch is a specialized electromechanical device that’s capable of handling significant electrical currents while connecting or disconnecting a power source from a load. This type of pushbuttons plays a crucial role in managing high currents while also protecting circuits from damage.
High-current pushbuttons are used across a multitude of industries (industrial, medical, transportation, agricultural, etc.) and have a variety of practical applications. Below, you’ll find E-Switch’s most popular selection of high-current pushbutton switches.
*NEW* KJE32 Series Heavy Duty, Industrial Power Pushbutton Switch
- Contact Ratings (TUV EN61058, UL EN61058)
- 20(20)A 250VAC
- 20(20)A 127VAC
- 25.1A 60VDC
- IP55 rated for dust and moisture protection (PVC cap)
- 46mm x 22mm x 2.5mm panel cutout
- Electromagnet provides automatic safety and protection against power outages and restarts
- Heavy duty industrial design
PVHC7 Series Illuminated, High Current Anti-Vandal Pushbutton Switch
- Contact Rating (UL60947-1, UL60947-5-1 and UL508 recognized per UL File E504759):
- 20A, 250VAC
- IP67 rated for dust and moisture protection
- 22mm panel cutout size
- SPST; latching or momentary function
- Illuminated ring, ring and power symbol or non-illuminated options
PVHC4 Series Illuminated, High Current Anti-Vandal Pushbutton Switch
- Contact Ratings (UL60947-1, UL60947-5-1 and UL508 recognized per UL File E504759):
- 20A, 250VAC
- 25A, 30VDC
- IP67 rated for dust and moisture protection
- 19mm panel cutout size
- SPST; latching or momentary function
- Illuminated ring, ring and power symbol or non-illuminated options

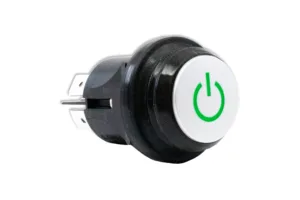

PB66 Series Illuminated Pushbutton Switch
- Contact Rating:
- 16(16)A 127VAC (UL)
- 25mm panel cutout size
- Electrical Life: 50,000 cycles
- IP66 rated for dust and moisture protection
- Power symbol illuminated or laser etched
LA Series Sealed, Illuminated Pushbutton Switch
- Contact Ratings:
- 5A @ 250 VAC
- 8A @ 125 VAC
- .2A @ 250 VDC
- 6A @ 24 VDC
- Panel cutout sizes: 22mm, 25.5mm and 30.5mm in diameter
- Power rated for direct and alternating currents
- IP65 rated for protection from dust and moisture
- Signal light illumination in multiple colors (LED, neon or incandescent lamps)
D16 Series Illuminated Pushbutton Switch
- Contact Ratings:
- 5A @ 250VAC (UL)
- 8A @ 125VAC (UL, CSA)
- 6A @ 24VDC (UL, CSA)
- Round (18mm), mushroom (24mm), rectangular (24mm x 18mm) and square (18mm x 18mm) panel mount designs
- Illuminated options available (LED, neon, incandescent)
- SPDT, DPDT, 3PDT or 4PDT; maintained (latching) or momentary pushbuttons
- Modular interface/contact block design
PB1973 Series Illuminated, Snap-In Pushbutton Switch
- Contact Ratings:
- 15A @ 250VAC (UL)
- 10A @ 250VAC (VDE)
- 13mm x 19.2mm panel cutout size
- Full illumination options and multiple actuator colors
- SPST or DPST circuits; maintained (latching) or momentary functions
- Operating Temperature: -10°C to +55°C
PA4 Series Illuminated, Power Pushbutton Switch
- Contact Rating:
- 16A 125/250VAC (UL, cUL)
- 13mm x 19mm panel cutout size
- Standard and water-resistant (IP54) versions
- Full illumination options and eight actuator marking choices
- Six terminal options, including PCB pins, solder and tabs
PA5 Series Power Pushbutton Switch
- Contact Rating:
- 16A 125/250VAC (UL, cUL)
- SPST or DPST circuits; maintained (latching) or momentary functions
- Easily customized actuator
- Engineered for use as a foot switch with popular industry design
- Terminal options include PCB pins, solder or tabs
PB2 Series Illuminated, Power Pushbutton Switch
- Contact Rating:
- 20A, 125VAC (cURus, UL508, RoHS compliant)
- IP54 rating for dust and water resistance (internal O-rings)
- 22mm x 30mm panel cutout size
- Multiple illumination voltages, lens colors, actuator colors and marking options
- Single-pole or double-pole functions

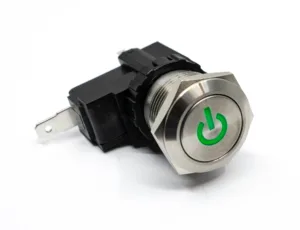

SAV4 Series Illuminated, High Current Anti-Vandal Pushbutton Switch
- Contact Rating:
- 15A, 125/250VAC
- IP67 rated for dust and moisture protection
- 19mm panel cutout size
- SPDT circuit; latching or momentary function
- Quick connect – 0.187″ (4.7mm) termination

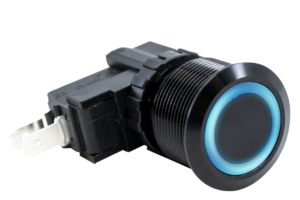

SAV7 Series Illuminated, High Current Anti-Vandal Pushbutton Switch
- Contact Rating:
- 15A, 125/250VAC
- IP67 rated for dust and moisture protection
- 22mm panel cutout size
- SPDT circuit; latching or momentary function
- Quick connect – 0.187″ (4.7mm) termination
SAV8 Series Illuminated, High Current Anti-Vandal Pushbutton Switch
- Contact Rating:
- 15A, 125/250VAC
- IP67 rated for dust and moisture protection
- 25mm panel cutout size
- SPDT circuit; latching or momentary function
- Quick connect – 0.187″ (4.7mm) termination
PP1 Series Push-Pull Pushbutton Detector Switch
- Contact Ratings:
- 16A 125VAC (UL, cUL)
- 12A 250VAC (UL, cUL)
- 1HP 125/250VAC (UL, cUL)
- IP40 rating for dust and moisture protection
- 28.4mm x 13.5mm panel cutout size
- Panel mount snap-in mounting design
- SPDT; push-pull or momentary functions
PP2 Series Push-Pull Pushbutton Detector Switch
- Electrical ratings:
- 16A 125VAC; UL, cUL
- 12A 250VAC; UL, cUL
- 1HP 125/250VAC; UL, cUL
- 10R(4)A 277VAC 5E4; UL, cUL
- IP40 rating
- Panel cutout size: 36.5mm x 13.5mm
- DPDT, push-pull or momentary functions
- Panel mount snap-in mounting design

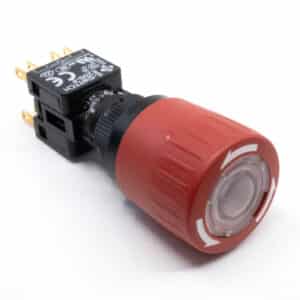

E200 Series Emergency Stop, Pushbutton Switch
- IP65 rating
- 16mm panel cutout size
- Contact ratings:
- 200mA @ 250VDC
- 5A @ 250VAC [VDE]
- 6A @ 24VDC
- 8A @ 125VAC
- Agency approvals: UL-cUL, ANSI/UL508; VDE, EN 61058-1 : IEC 61058-1
- Contact arrangement options: 1NO/1NC+1NO/1NC, 1NO/1NC, 2NO, 1NO
If you want to browse E-Switch’s complete selection of power rated products — including high-current toggles, rockers, slides, detectors and snap action switches — then follow this link.
