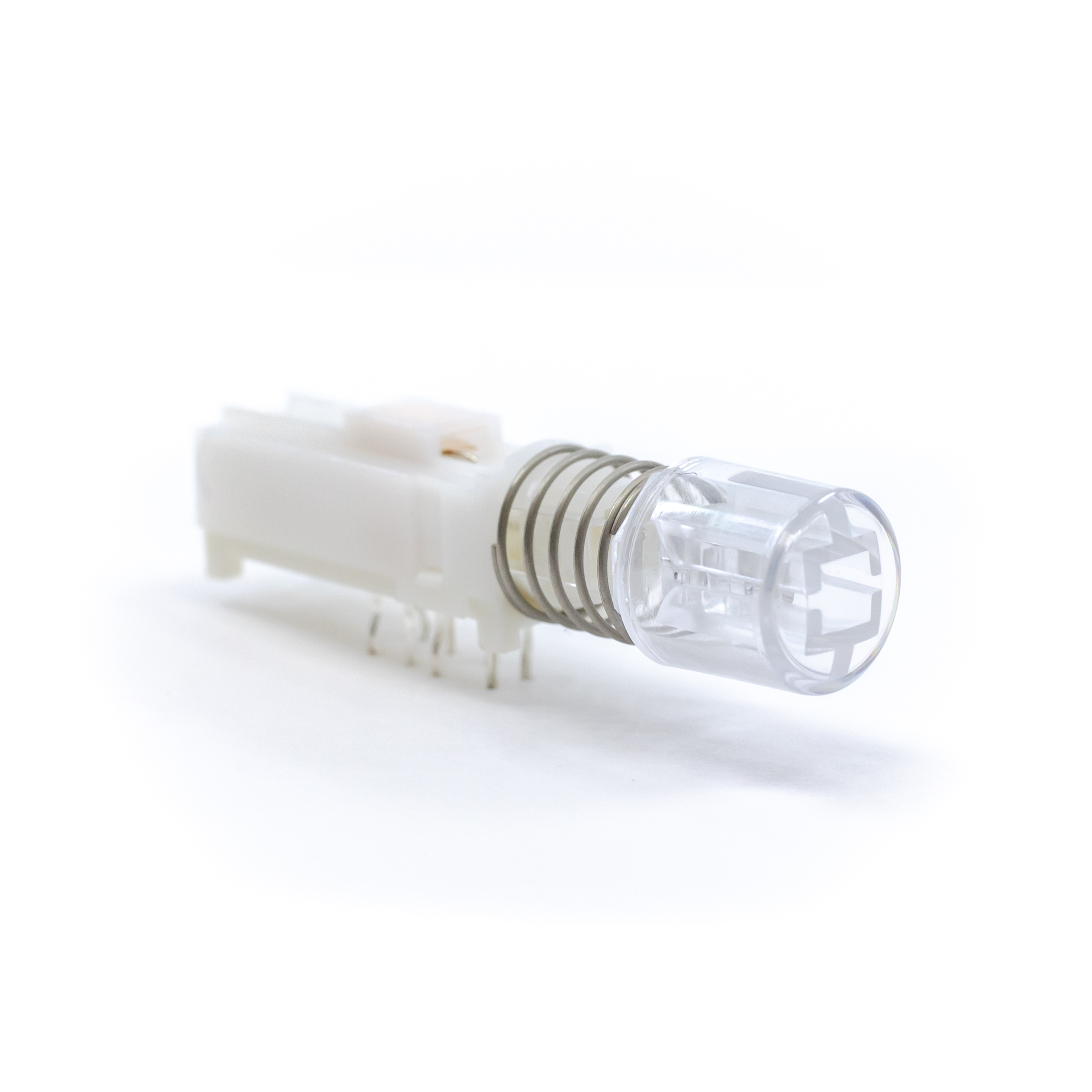

WBL Series Illuminated, Right Angle Pushbutton Switch
Stock Check for WBL2UEEGBQR05CLR
Not the product you are looking for? Configure your product
PUSHBUTTON, 300mA, 30VDC, DPDT, On-On, Through Hole, Right Angle, Illuminated
About WBL Series
- DPDT or 4PDT, maintained (latching) or momentary pushbuttons
- Multiple LED illumination colors, including bi-color LEDs
- Right angle, through-hole PCB mounting design
- 300mA, 30VDC electrical rating
- Optional transparent cap
- Travel: 3.3mm full, maintained latches at 2.5mm
- Operating Force: 200 grams
- Operating/Storage Temperature: -20°C to +70°C
WBL Series Markets
Product Specifications
WBL2UEEGBQR05CLR
PUSHBUTTON, 300mA, 30VDC, DPDT, On-On, Through Hole, Right Angle, Illuminated
- Series Name WBL
- PackagingBulk
- Current Rating300mA
- Voltage Rating30VDC
- CircuitDPDT
- FunctionOn-On
- Mounting TypeThrough Hole, Right Angle
- Termination TypePC Pin
- Contact MaterialSilver
- Actuator TypeRound, Button
- Illumination StyleFull
- Illumination ColorLED, Blue/Green
- Illumination Voltage1.7, 3.5VDC
- Operating Temperature-20°C to 70°C
- Cap OptionClear Cap
Support for WBL2UEEGBQR05CLR
Not the product you are looking for? Configure your product
