Read MoreULV8 Series UL Certified, Illuminated Anti-Vandal Switch

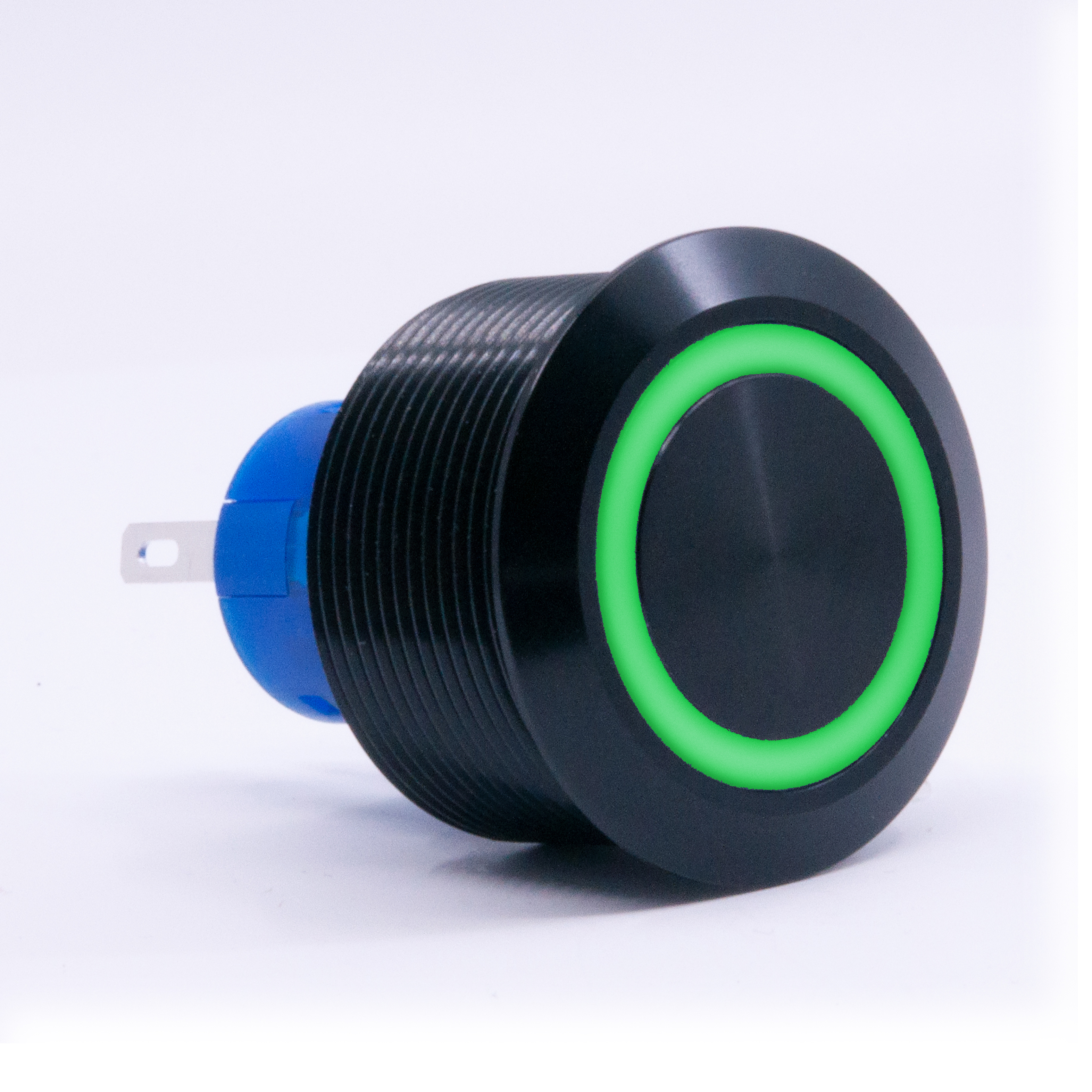

ULV8 Series UL Certified, Illuminated Anti-Vandal Switch
Stock Check for ULV8F23SS311
Not the product you are looking for? Configure your product
ANTI-VANDAL, 3A, 250VAC, SPDT, On-On, Panel Mount, Front, Illuminated
About ULV8 Series
- 25mm panel cutout
- 3A, 125/250VAC, UL;Â IP67 rated
- SPDT or DPDT circuit; latching or momentary
- Solder, wire leads, detachable socket with wire leads, or molded back with wire leads
- Flat actuator
- Stainless steel or black anodized finish
- Illuminated ring, ring and power symbol, or custom graphic
- Many LED illumination color options including bi-color
- Many illumination voltage options
- 43 different illuminated custom graphics options
- Silver or gold contact material
- 50,000 cycles electrical life
- -20°C to 55°C operating temperature
ULV8 Series Markets
Product Specifications
ULV8F23SS311
ANTI-VANDAL, 3A, 250VAC, SPDT, On-On, Panel Mount, Front, Illuminated
- Series Name ULV8
- PackagingBulk
- Current Rating3A
- Voltage Rating250VAC
- CircuitSPDT
- FunctionOn-On
- Mounting TypePanel Mount, Front
- Termination TypeSolder
- Contact MaterialSilver
- Actuator TypeRound, Button, Flush
- Actuator ColorStainless Steel
- Illumination StyleRing
- Illumination ColorLED, Red
- Illumination Voltage3VDC
- Ingress ProtectionIP67
- Operating Force2.5N
- Panel Cutout DimensionsCircular - 25mm Dia.
- Operating Temperature-20°C to 55°C
Support for ULV8F23SS311
Not the product you are looking for? Configure your product
