Read MoreTL6800 Series Sealed, Long Life, SMT Tactile Switch

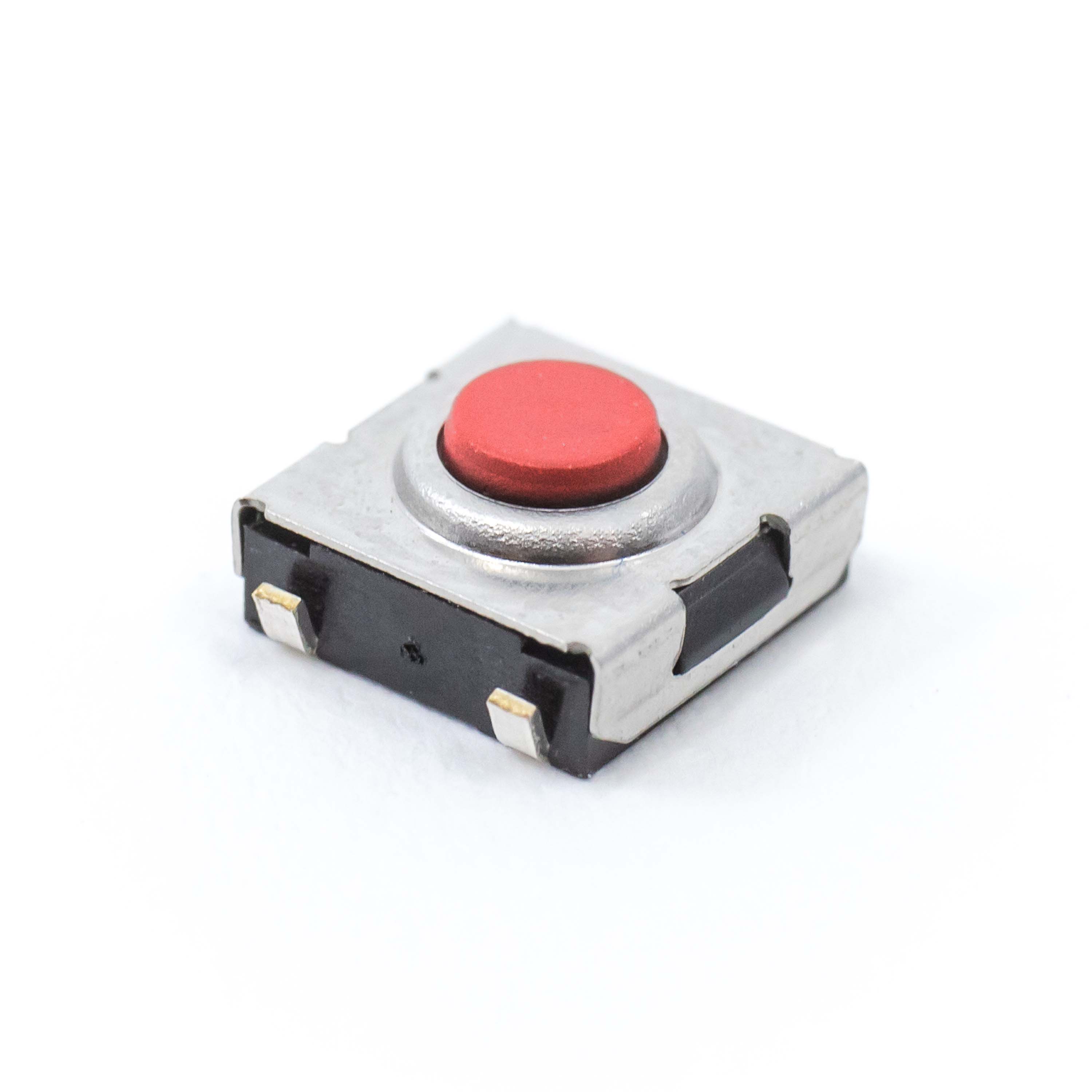

TL6800 Series Sealed, Long Life, SMT Tactile Switch
Stock Check for TL6800AF260QJ
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Illuminated
About TL6800 Series
- IP67
- Surface mount (SMT) design
- 6.3mm x 6.2mm
- Up to 1,000,000 cycle life
- 160gf or 260gf operating force
- 3.1mm actuator height
- Silver contact material
- -40°C to 90°C operating temperature
- 50mA @ 12VDC
- Tape and reel packaged
TL6800 Series Markets
Product Specifications
TL6800AF260QJ
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Illuminated
- Series Name TL6800
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount
- Termination TypeJ-lead
- Contact MaterialSilver
- Actuator TypeStandard
- Actuator Height3.10mm
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Ingress ProtectionIP67
- Operating Force260gf
- Operating Temperature-40°C to 90°C
