Read MoreTL6110 Series Sealed, Through Hole Right Angle Tactile Switch

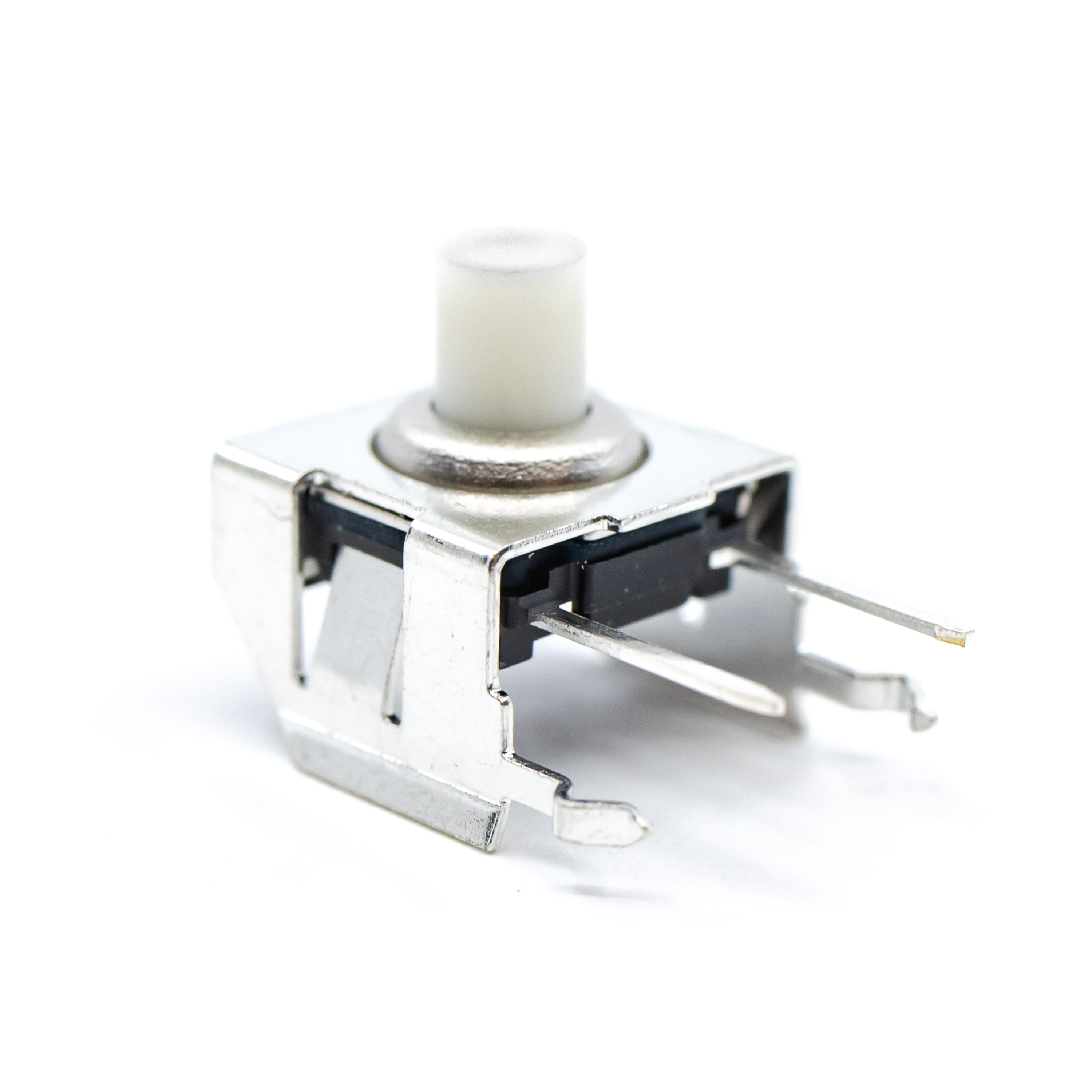

TL6110 Series Sealed, Through Hole Right Angle Tactile Switch
Stock Check for TL6110CF160QP
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Through Hole, Right Angle
About TL6110 Series
- IP67
- Through hole right angle mounting design
- 8.3mm x 5.8mm
- 130gf, 160gf, 300gf, or 500gf operating force
- Many actuator height options
- Up to 1,000,000 cycle life
- Silver or gold contact material
- -40°C to 85°C operating temperature
- 50mA @ 12VDC
TL6110 Series Markets
Product Specifications
TL6110CF160QP
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Through Hole, Right Angle
- Series Name TL6110
- PackagingTube
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeThrough Hole, Right Angle
- Termination TypePC Pin
- Contact MaterialSilver
- Actuator TypeStandard
- Actuator Height5.70mm
- Illumination Style-
- Illumination Color-
- Operating Force160gf
- Operating Temperature-40°C to 85°C
