Read MoreTL1016 Series Subminiature, SMT Right Angle Tactile Switch
TL1016 Series Subminiature, SMT Right Angle Tactile Switch
Stock Check for TL1016ABF220QG
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Right Angle
About TL1016 Series
- Surface mount right angle (SMT) design
- 4.7mm x 2.9mm
- 3.55mm actuator length
- 1.35mm height off pcb
- 160gf or 220gf operating force
- Mounting boss option
- Ground terminal option
- Gull wing termination
- 100,000 cycle life
- Silver contact material
- -40 to 85°C operating temperature
- 50mA @ 12VDC
- Tape and reel packaged
TL1016 Series Markets
Product Specifications

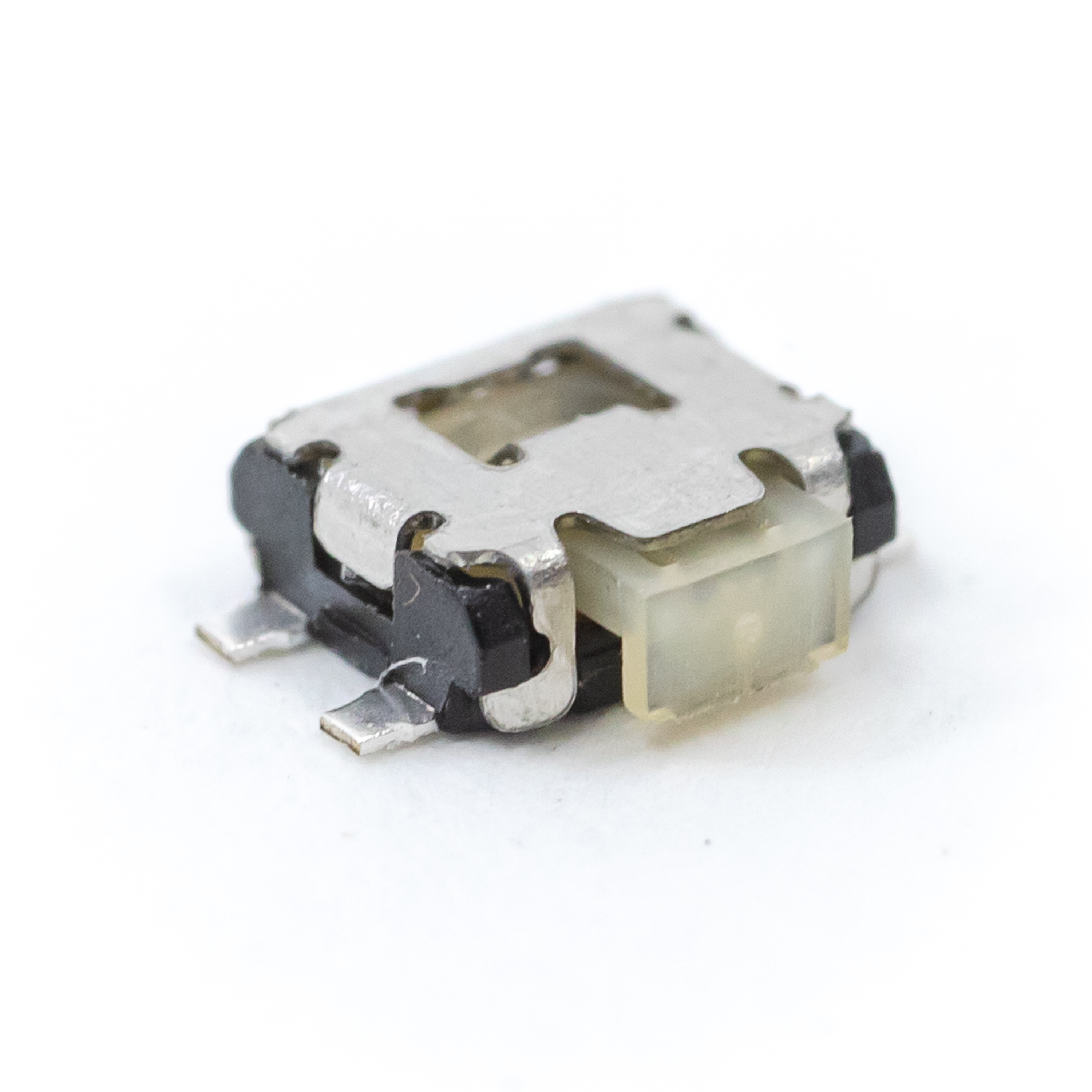

TL1016ABF220QG
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Right Angle
- Series Name TL1016
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount, Right Angle
- Termination TypeGull Wing
- Contact MaterialSilver
- Actuator TypeRectangular, Button
- Actuator Height3.55mm
- Illumination Style-
- Illumination Color-
- Operating Force220gf
- Operating Temperature-40°C to 85°C
