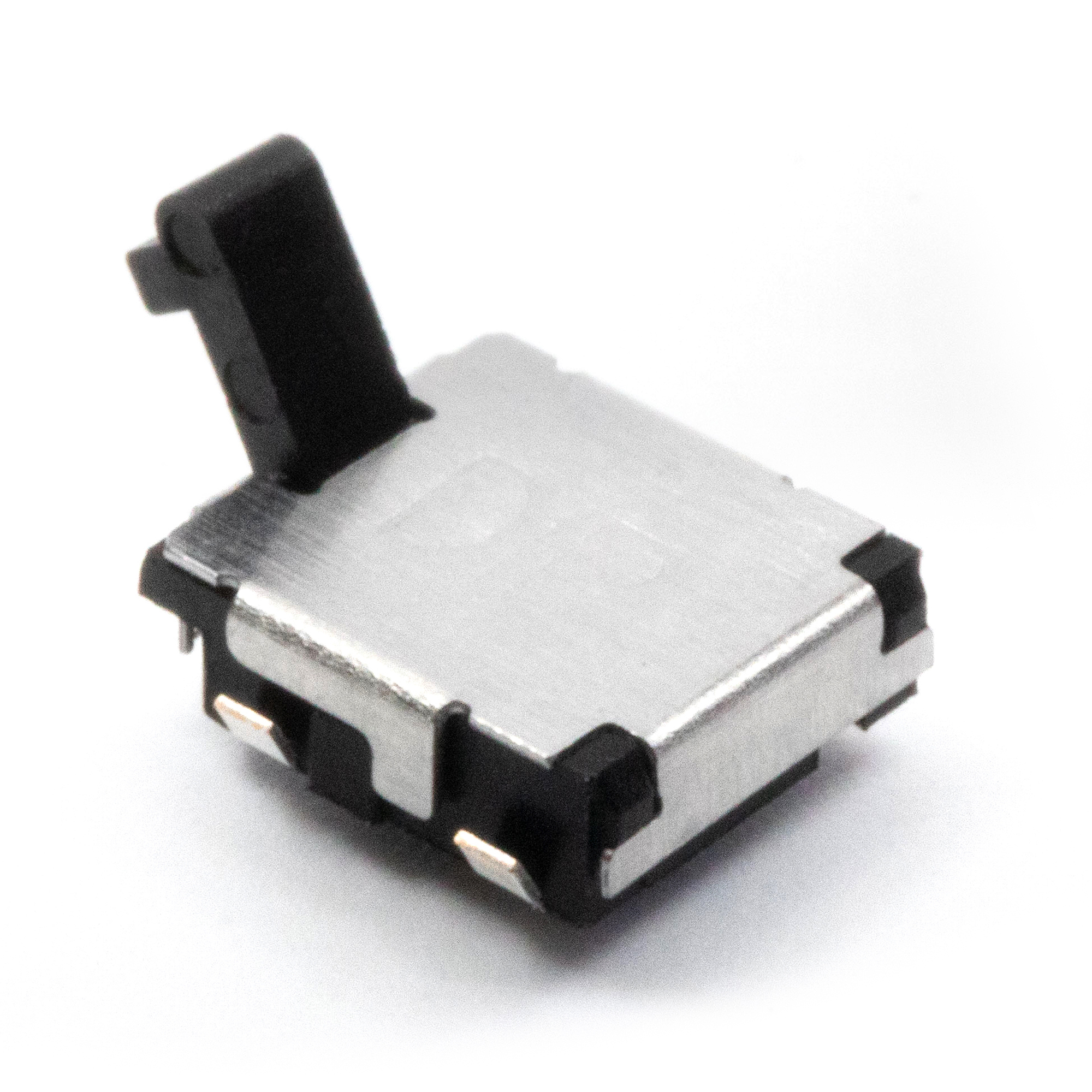

TD1260 Series Ultraminiature SMT Detector Switch
Stock Check for TD1260BGQJR
Not the product you are looking for? Configure your product
DETECTOR, 1mA, 5VDC, SPST, Surface Mount
About TD1260 Series
- Angled lever actuator with sharp detection feeling
- 1mA @ 5VDC
- Surface mount (SMT) design
- SPST-NO or SPST-NC circuit; momentary function
- Ultraminiature 4.25mm x 4.0mm size
- Very low profile: 3.13mm
- 2.5mm travel
- Mounting boss
- 50,000 cycle life
- 35gf max operating force
- Silver contact material
- -25 to 55°C operating temperature
- Tape and Reel Packaging
TD1260 Series Markets
Product Specifications
TD1260BGQJR
DETECTOR, 1mA, 5VDC, SPST, Surface Mount
- Series Name TD1260
- PackagingBulk
- Current Rating1mA
- Voltage Rating5VDC
- CircuitSPST
- Mounting TypeSurface Mount
- Termination TypeJ-lead
- Contact MaterialSilver
- Actuator TypeAngled Toggle (Detector)
- Actuator ColorBlack
- Actuator Height3.14 mm
- Ingress ProtectionIP67
- Operating Force35gf
- Operating Temperature-40°C to 85°C
