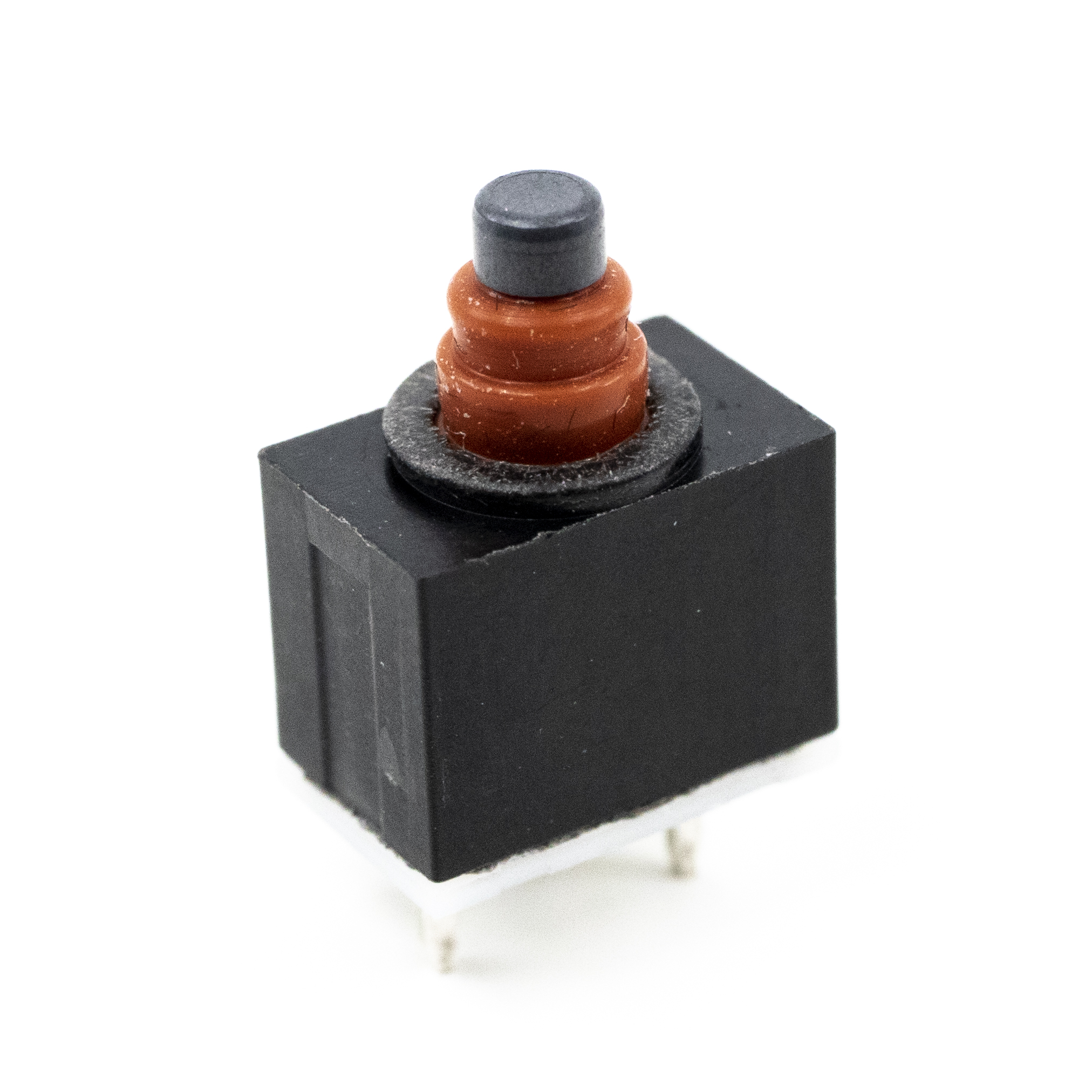

TD1150 Series Sealed Detector Switch
Stock Check for TD1150AF100Q
Not the product you are looking for? Configure your product
DETECTOR, 100mA, 12VDC, SPST, Off-(On), Through Hole
About TD1150 Series
- 100mA, 12VDC;Â IP67
- Through hole mounting design; PC pin termination
- SPST circuit; momentary function
- Round pin plunger actuator
- 35gf nominal to electrical make (0.5mm travel); 100gf nominal to full stroke (2.5mm travel)
- 4.10mm operating position
- Contact resistance: 500mΩ max. Initial
- Silver contact material
- 300,000 cycle life
- -40°C to 85°C operating temperature
TD1150 Series Markets
Product Specifications
TD1150AF100Q
DETECTOR, 100mA, 12VDC, SPST, Off-(On), Through Hole
- Series Name TD1150
- PackagingBulk
- Current Rating100mA
- Voltage Rating12VDC
- CircuitSPST
- FunctionOff-(On)
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Contact MaterialSilver
- Actuator TypeRound (Pin Plunger)
- Actuator Height4.10mm
- Ingress ProtectionIP67
- Operating Force100gf
- Operating Temperature-40°C to 85°C
