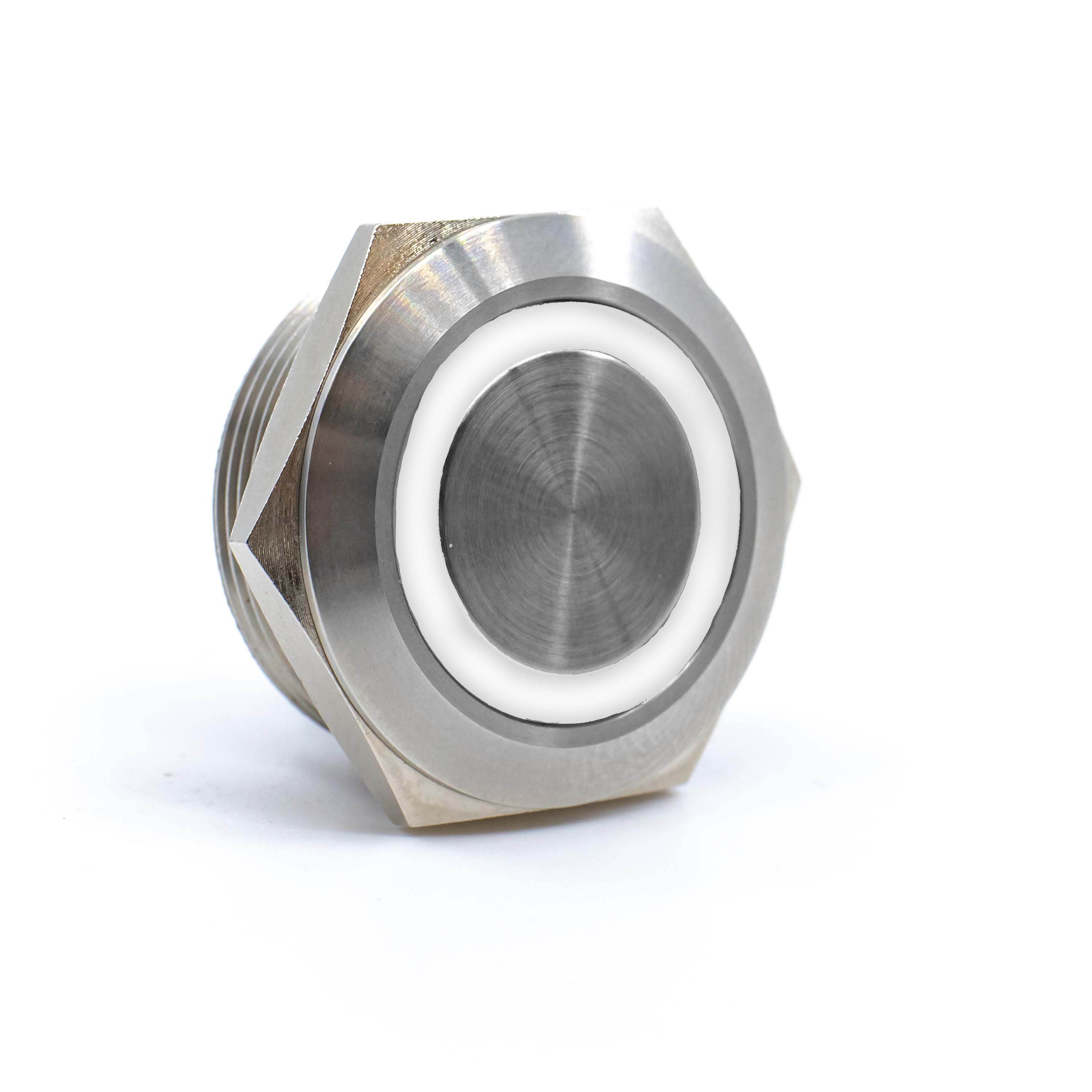

SV8 Series Illuminated, Short Body Anti-Vandal Switch

SV8 Series Illuminated, Short Body Anti-Vandal Switch Wire Leads & Connectors Available

SV8 Series: SV8F23SS-351

Categories: ANTI-VANDAL

  • document Series Data Sheet
  • document Spec Sheet (2D)

RoHS Compliant REACH Compliant UL Certified

SV8 Series Illuminated, Short Body Anti-Vandal Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

SV8F23SS-351

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for SV8F23SS-351

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the SV8F23SS-351 from our authorized distributors.

In-Stock Distributors

ANTI-VANDAL, 2A, 36VDC, SPST, Off-(On), Panel Mount, Front, Illuminated


About SV8 Series

  • 25mm panel cutout
  • 2A, 36VDC;  IP67 rated
  • Short body design
  • SPST circuit; momentary function
  • Solder or wire leads 500mm long termination options
  • Stainless steel finish
  • Flat actuator
  • Illuminated ring or ring/power symbol options
  • Many LED illumination color options including bi-color
  • Laser etched custom graphic optional
  • 1 million cycles mechanical life
  • -20°C to 70°C operating temperature

Product Specifications

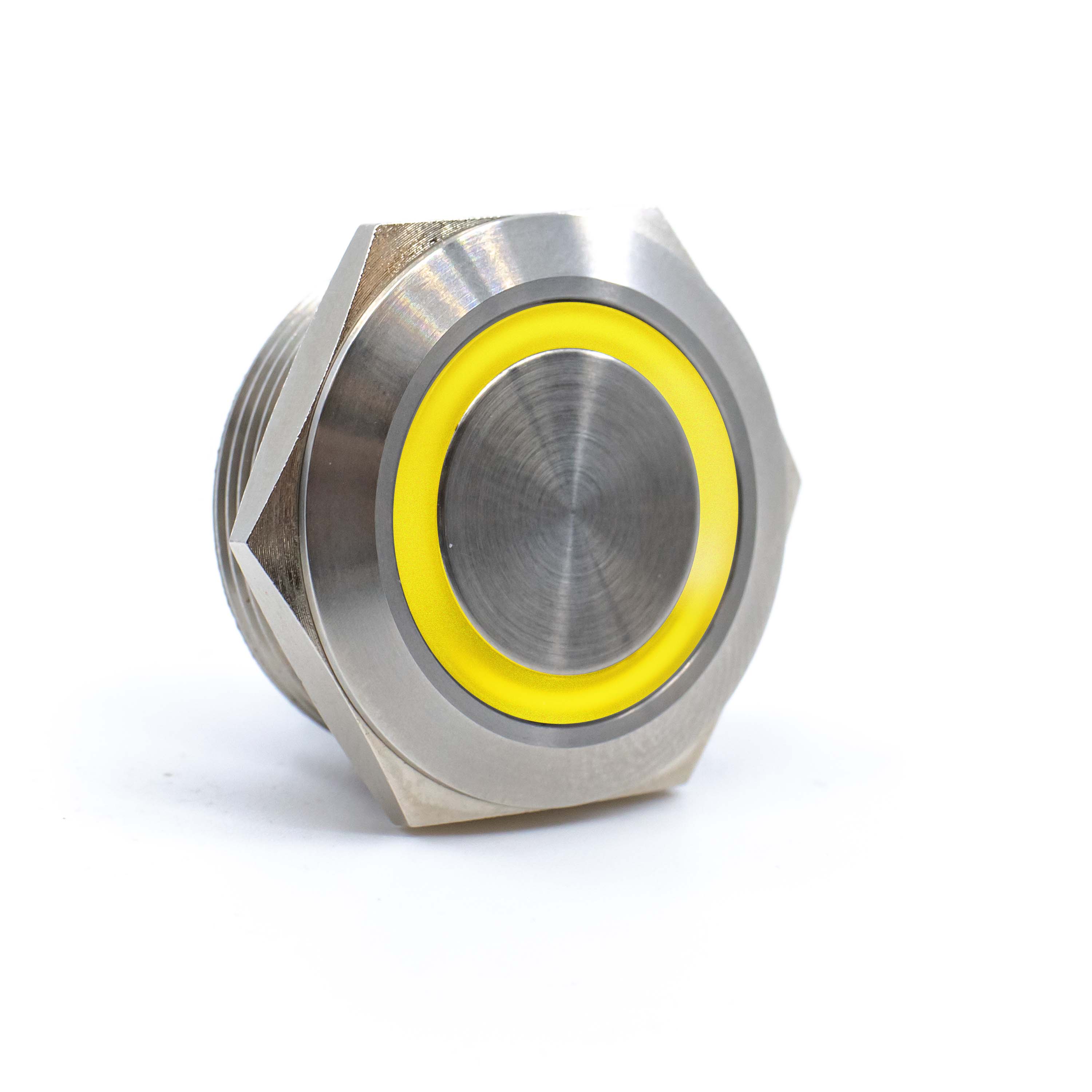

SV8F23SS-351

ANTI-VANDAL, 2A, 36VDC, SPST, Off-(On), Panel Mount, Front, Illuminated

  • Series Name SV8
  • PackagingBulk
  • Current Rating2A
  • Voltage Rating36VDC
  • CircuitSPST
  • FunctionOff-(On)
  • Mounting TypePanel Mount, Front
  • Termination TypeSolder
  • Contact MaterialSilver
  • Actuator TypeRound, Button, Flush
  • Actuator ColorStainless Steel
  • Illumination StyleRing
  • Illumination ColorLED, Yellow
  • Illumination Voltage2VDC
  • Ingress ProtectionIP67
  • Operating Force4.5N
  • Panel Cutout DimensionsCircular - 25mm Dia.
  • Operating Temperature-20°C to 70°C
