ST4 Series High Current, Sealed, Power Toggle Switch

ST4 Series High Current, Sealed, Power Toggle Switch Wire Leads & Connectors Available

ST4 Series: ST4SP8AT2C2

Categories: TOGGLE

  • document Series Data Sheet
  • document Spec Sheet (2D)

RoHS Compliant REACH Compliant UL Certified

ST4 Series High Current, Sealed, Power Toggle Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

ST4SP8AT2C2

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for ST4SP8AT2C2

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the ST4SP8AT2C2 from our authorized distributors.

In-Stock Distributors

TOGGLE, 16A, 125VAC, SPDT, On-Off-On, Panel Mount

Powered by oemsecrets

About ST4 Series

  • IP68
  • Electrical Rating options:
    • 16(8)A @ 125/250VAC, μT55; UL, cUL
    • 20(8)A @ 125/250VAC, μT55; UL, cUL
    • 20A @ 6-30VDC, μT55; UL, cUL
  • Single Pole or Double Pole, 2 or 3 positions; nine total function options
  • 3/16” quick connect, 1/4” quick connect, Solder lug, or Screw termination options
  • 17mm Metal Bat or 22mm Plastic Bat actuator options
  • 12mm diameter panel cutout
  • -10°C to 55°C operating temperature

ST4 Toggle Switch - E-Bits

ST4 Series Markets

Appliance

Product Specifications

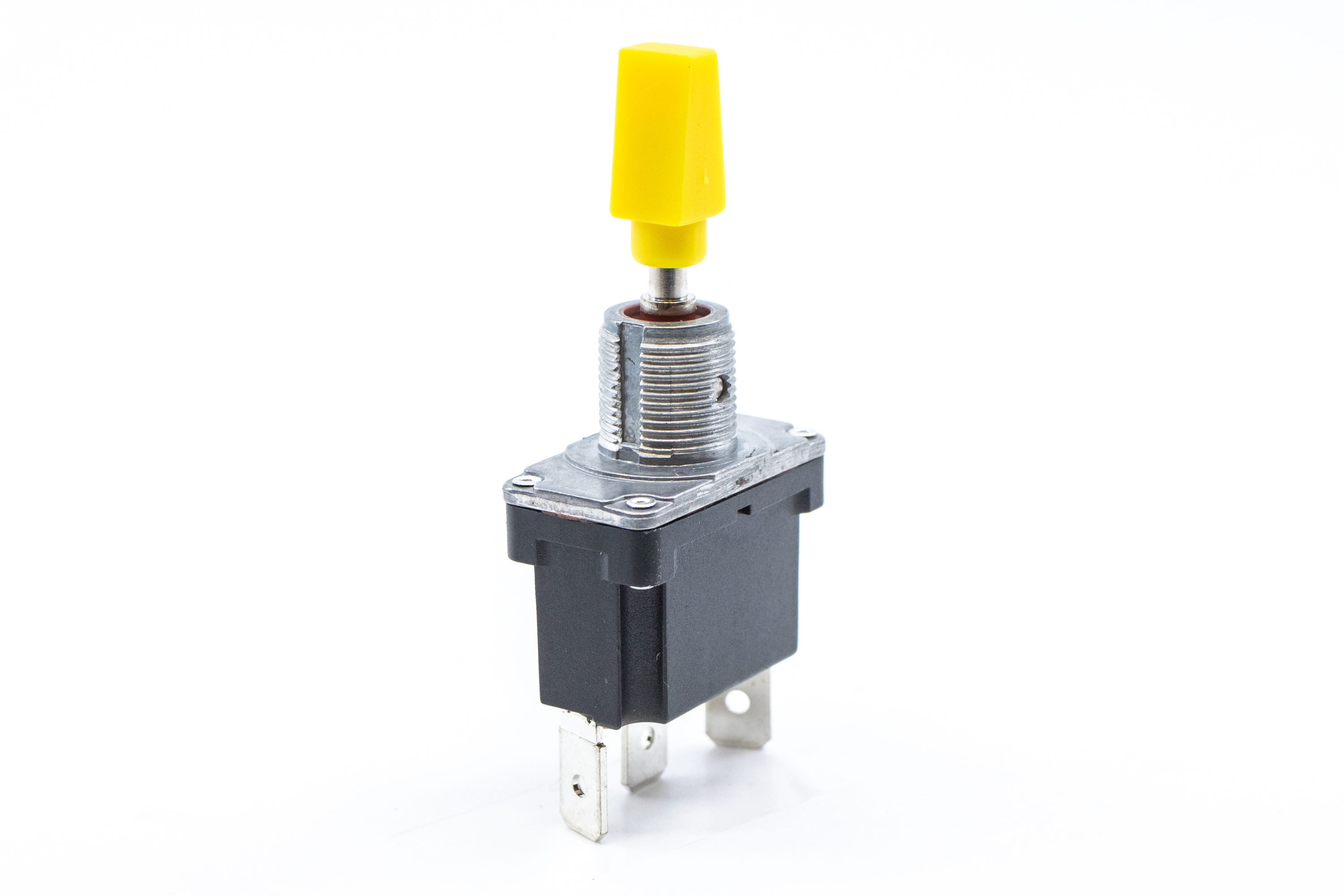

ST4SP8AT2C2

TOGGLE, 16A, 125VAC, SPDT, On-Off-On, Panel Mount

  • Series Name ST4
  • PackagingBulk
  • Current Rating16A
  • Voltage Rating125VAC
  • CircuitSPDT
  • FunctionOn-Off-On
  • Mounting TypePanel Mount
  • Termination TypeQuick Connect - 0.250"
  • Contact MaterialSilver
  • Actuator TypeFlatted
  • Actuator Height22.20mm
  • Ingress ProtectionIP68
  • Panel Cutout DimensionsCircular - 12mm Dia.
  • Operating Temperature-10°C to 55°C
  • Bushing15/32-32
