ST1 Series High Current, Power Toggle Switch

ST1 Series High Current, Power Toggle Switch Wire Leads & Connectors Available

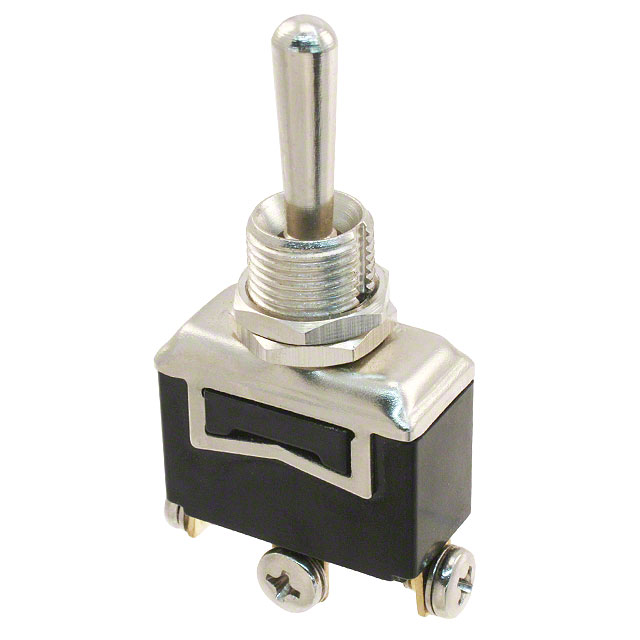

ST1 Series: ST165D00

Categories: TOGGLE

  • document Series Data Sheet
  • document Spec Sheet (2D)

RoHS Compliant REACH Compliant UL Certified

ST1 Series High Current, Power Toggle Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

ST165D00

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for ST165D00

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the ST165D00 from our authorized distributors.

In-Stock Distributors

TOGGLE, 20A, 125VAC, SPDT, On-Off-On, Panel Mount

Powered by oemsecrets

About ST1 Series

  • Electrical Ratings:
    • 20A 125VAC; UL, cUL
    • 15A 277VAC; UL, cUL
    • 2.0HP 125-277VAC; UL, cUL (latching),  1.5HP 125-277VAC; UL, cUL (momentary)
  • SPST-NO, SPST, or SPDT circuit, momentary or latching function
  • Tab, Solder, Screw, or Wire Leads termination options
  • M12 x 1.0 or 15/32” – 32UNS bushing options
  • Standard or Short bat actuator options
  • 12mm diameter panel cutout
  • 0°C to 85°C operating temperature

E-Switch E-Bits: Prewired ST Series Toggle Switches

ST1 Series Markets

Industrial

Product Specifications

ST165D00

TOGGLE, 20A, 125VAC, SPDT, On-Off-On, Panel Mount

  • Series Name ST1
  • PackagingBulk
  • Current Rating20A
  • Voltage Rating125VAC
  • CircuitSPDT
  • FunctionOn-Off-On
  • Mounting TypePanel Mount
  • Termination TypeScrew
  • Contact MaterialSilver
  • Actuator TypeStandard Round
  • Actuator Height19.50mm
  • Panel Cutout DimensionsCircular - 12mm Dia.
  • Operating Temperature0°C to 85°C
  • BushingM12 x 1
