Read MoreRVW Series Sealed, Power Rocker Switch
RVW Series Sealed, Power Rocker Switch
Stock Check for RVW41D1100
Not the product you are looking for? Configure your product
ROCKER, 20A, 125VAC, SPST, Off-On, Panel Mount, Snap-In
About RVW Series
- 36.8mm x 21mm panel cutout
- Up to 20A, 125VAC, 2HP; UL, cUL;Â IP54 rated
- 1 or 2 pole; 2 or 3 positions; momentary or latching function
- Panel mount snap-in design
- Matte or glossy finish options
- Quick-connect, solder, screw, or wire leads termination
- Many housing and actuator color options
- Eight actuator marking options
- Non-illuminated
- 0°C to 55°C operating temperature
RVW Series Markets
Product Specifications

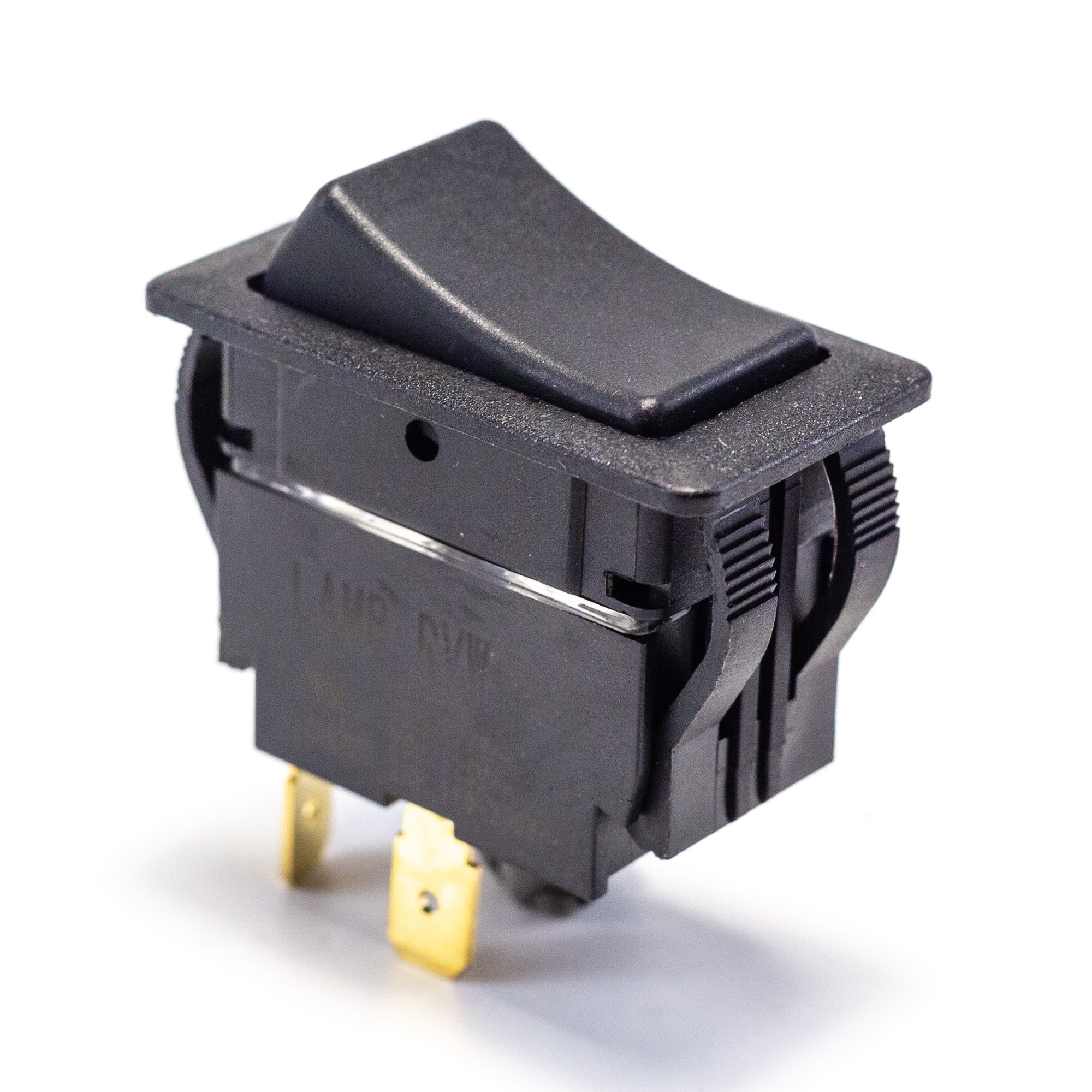

RVW41D1100
ROCKER, 20A, 125VAC, SPST, Off-On, Panel Mount, Snap-In
- Series Name RVW
- PackagingBulk
- Current Rating20A
- Voltage Rating125VAC
- CircuitSPST
- FunctionOff-On
- Mounting TypePanel Mount, Snap-In
- Termination TypeQuick Connect - 0.250"
- Actuator TypeConcave (Curved)
- Actuator ColorBlack
- Ingress ProtectionIP54
- Panel Cutout DimensionsRectangular - 36.8mm x 21mm
- Operating Temperature0°C to 55°C
Support for RVW41D1100
Not the product you are looking for? Configure your product
