Read MoreRR8 Series Round, Illuminated, Power Rocker Switch with PVC Cap

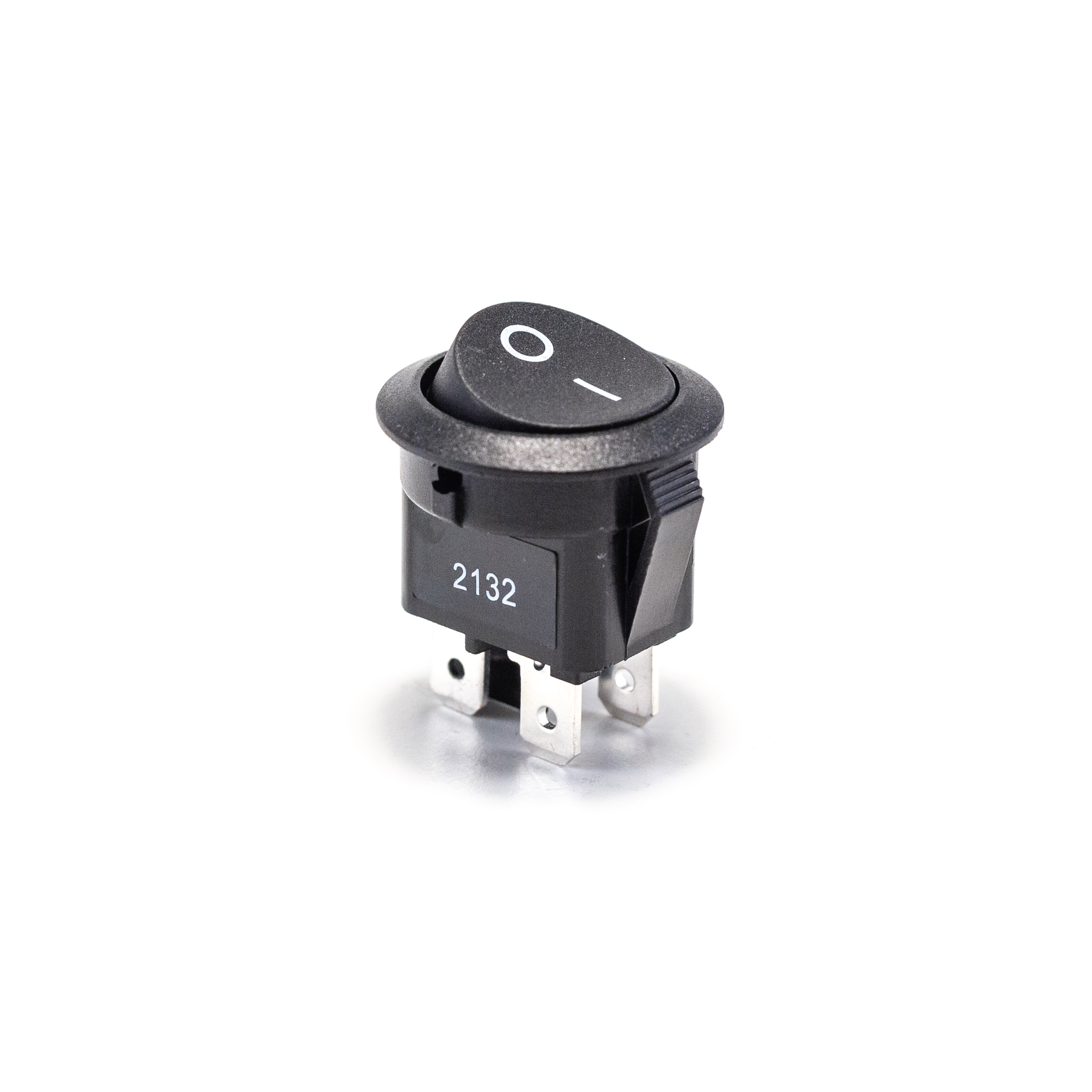

RR8 Series Round, Illuminated, Power Rocker Switch with PVC Cap
Stock Check for RR81231121
Not the product you are looking for? Configure your product
ROCKER, 10A, 125VAC, DPST, Off-On, Panel Mount, Snap-In
About RR8 Series
- IP54 with PVC Cap: ACC-P03
- 20mm diameter panel cutout
- Up to 16A, 125VAC, 1/3HP; UL, cUL
- DPST; Off-On
- Panel mount snap-in design
- Quick connect – 0.187″, or wire leads termination
- Full illumination or non-illuminated options
- Many housing and actuator color options
- Five actuator marking options
- Multiple LED illumination color and voltage options
- -20°C to 105°C operating temperature
RR8 Series Markets
Product Specifications
RR81231121
ROCKER, 10A, 125VAC, DPST, Off-On, Panel Mount, Snap-In
- Series Name RR8
- PackagingBulk
- Current Rating10A
- Voltage Rating125VAC
- CircuitDPST
- FunctionOff-On
- Mounting TypePanel Mount, Snap-In
- Termination TypeQuick Connect - 0.187"
- Actuator TypeRound
- Actuator ColorBlack
- Panel Cutout DimensionsCircular - 20mm Dia.
- Operating Temperature-20°C to 105°C
Support for RR81231121
Not the product you are looking for? Configure your product
