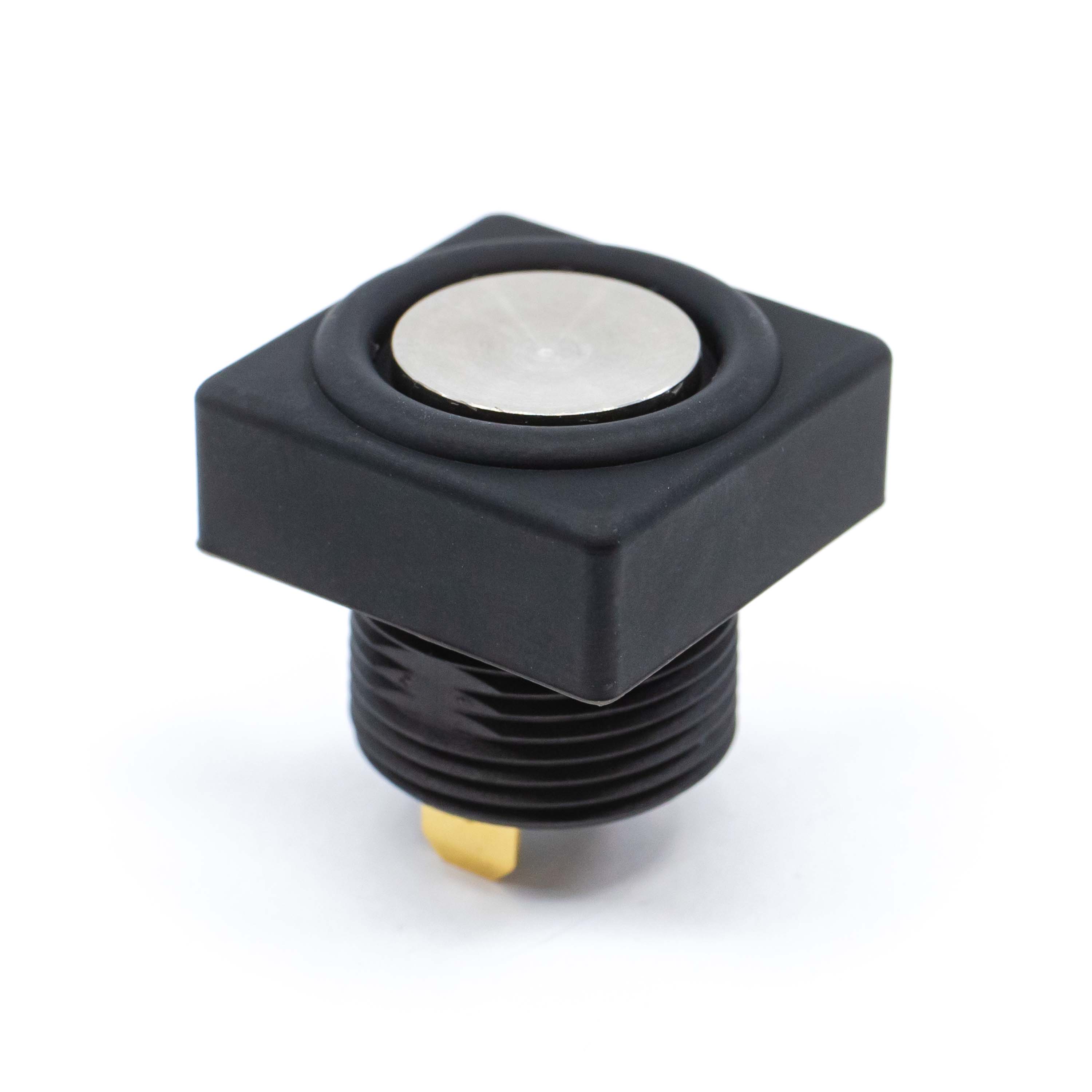

RP8600 Series Square Pushbutton Switch

RP8600 Series Square Pushbutton Switch Wire Leads & Connectors Available

RP8600 Series: RP8600B2M1CEBLKSIL

Categories: PUSHBUTTON

  • document Series Data Sheet
  • document Spec Sheet (2D)

RoHS Compliant REACH Compliant

RP8600 Series Square Pushbutton Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

RP8600B2M1CEBLKSIL

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for RP8600B2M1CEBLKSIL

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the RP8600B2M1CEBLKSIL from our authorized distributors.

In-Stock Distributors

PUSHBUTTON, 0.4VA, 20VAC/VDC, SPST, Off-(On), Panel Mount, Front

Powered by oemsecrets

About RP8600 Series

  • IP67 rated protection from dust and moisture
  • Life expectancy of 100,000 cycles
  • Threaded mount
  • 16mm diameter panel cutout
  • Panel Thickness: 1.5mm – 5.0mm
  • Contact Rating: 0.4VA Max. @ 20V Max (AC or DC)
  • SPST, momentary pushbuttons
  • Operating/Storage Temperature: -30°C to +85°C

RP8600 Series Markets

Food Industry

Product Specifications

RP8600B2M1CEBLKSIL

PUSHBUTTON, 0.4VA, 20VAC/VDC, SPST, Off-(On), Panel Mount, Front

  • Series Name RP8600
  • PackagingBulk
  • Current Rating0.4VA
  • Voltage Rating20VAC/VDC
  • CircuitSPST
  • FunctionOff-(On)
  • Mounting TypePanel Mount, Front
  • Termination TypeSolder
  • Contact MaterialGold over Silver
  • Actuator TypeRound, Button, Flush
  • Actuator ColorSilver
  • Ingress ProtectionIP67
  • Panel Cutout DimensionsCircular - 16mm Dia.
  • Operating Temperature-30°C to 85°C
