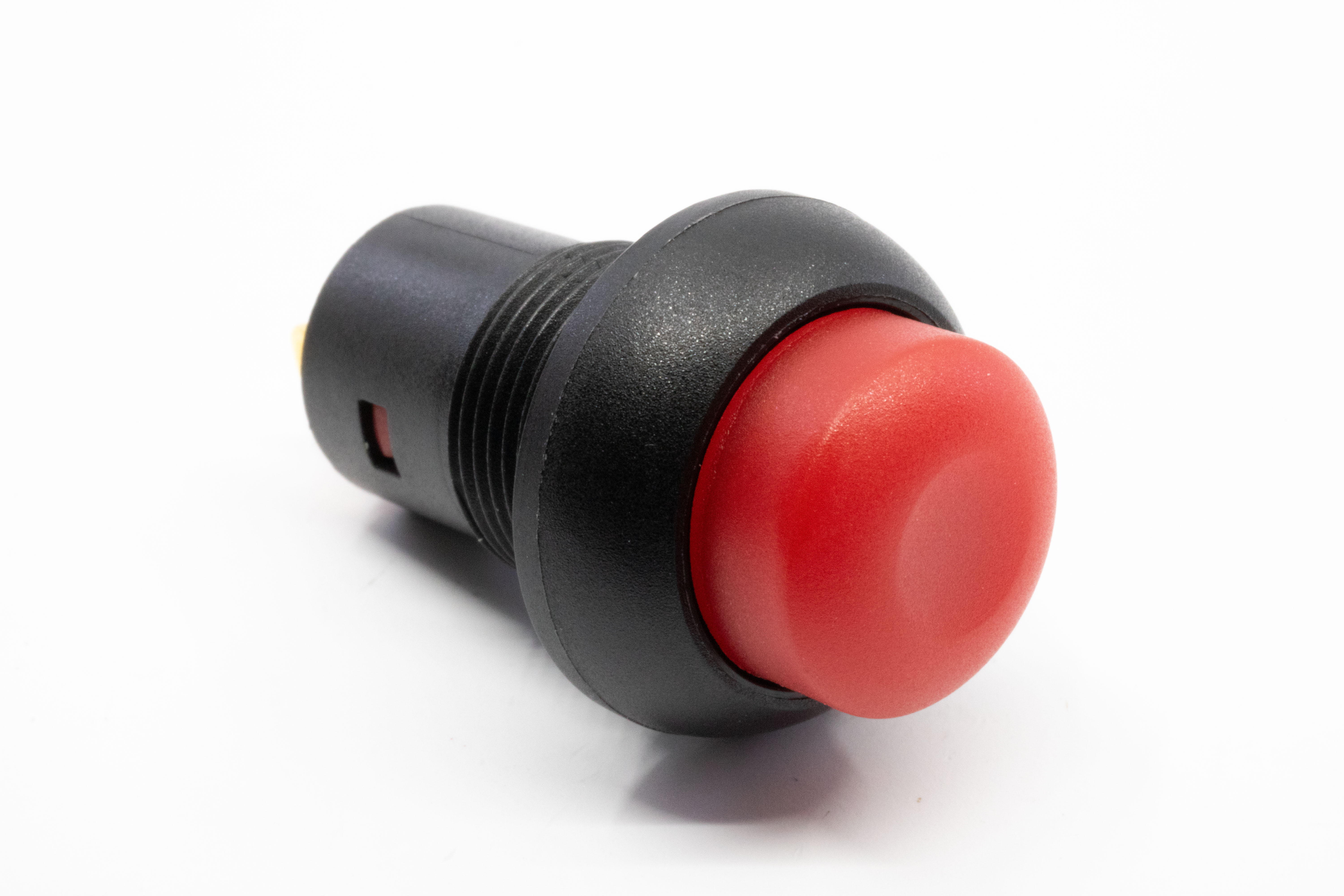

RP8200 Series Round, Illuminated Pushbutton Switch

RP8200 Series Round, Illuminated Pushbutton Switch Wire Leads & Connectors Available

RP8200 Series: RP8201B2M1CEBLKREDNIL

Categories: PUSHBUTTON

RoHS Compliant REACH Compliant

RP8200 Series Round, Illuminated Pushbutton Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

RP8201B2M1CEBLKREDNIL

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for RP8201B2M1CEBLKREDNIL

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the RP8201B2M1CEBLKREDNIL from our authorized distributors.

In-Stock Distributors

PUSHBUTTON, 100mA, 24VDC, SPST, Off-On, Panel Mount, Front, Illuminated

Powered by oemsecrets

About RP8200 Series

  • IP67
  • Threaded mount
  • 200,000-cycle life expectancy
  • Electrical Rating: 100mA @ 24VDC
  • LED illumination options
  • SPST; maintained (latching) pushbuttons
  • Travel: 2.5mm
  • Operating Temperature: -30°C to 85°C

RP8200 Series Markets

Agricultural

Product Specifications

RP8201B2M1CEBLKREDNIL

PUSHBUTTON, 100mA, 24VDC, SPST, Off-On, Panel Mount, Front, Illuminated

  • Series Name RP8200
  • PackagingBulk
  • Current Rating100mA
  • Voltage Rating24VDC
  • CircuitSPST
  • FunctionOff-On
  • Mounting TypePanel Mount, Front
  • Termination TypeSolder
  • Contact MaterialGold over Silver
  • Actuator TypeRound, Button
  • Actuator ColorRed
  • Illumination StyleNon-illuminated
  • Illumination ColorNon-illuminated
  • Ingress ProtectionIP67
  • Panel Cutout DimensionsCircular - 13.6mm Dia.
  • Operating Temperature-30°C to 85°C
