RP3502 Series Pushbutton Switch
Stock Check for RP3502MAYEL
Not the product you are looking for? Configure your product
PUSHBUTTON, 3A, 120VAC, SPST, Off-(On), Panel Mount, Front
About RP3502 Series
- 12.7mm diameter panel cutout
- 3A, 120VAC; UL
- SPST-NO or SPST-NC circuit; momentary function
- Plastic or metal body style
- Solder termination
- Round button actuator
- Black, red, green, or yellow actuator color
- -20°C to 65°C operating temperature
RP3502 Series Markets
Product Specifications

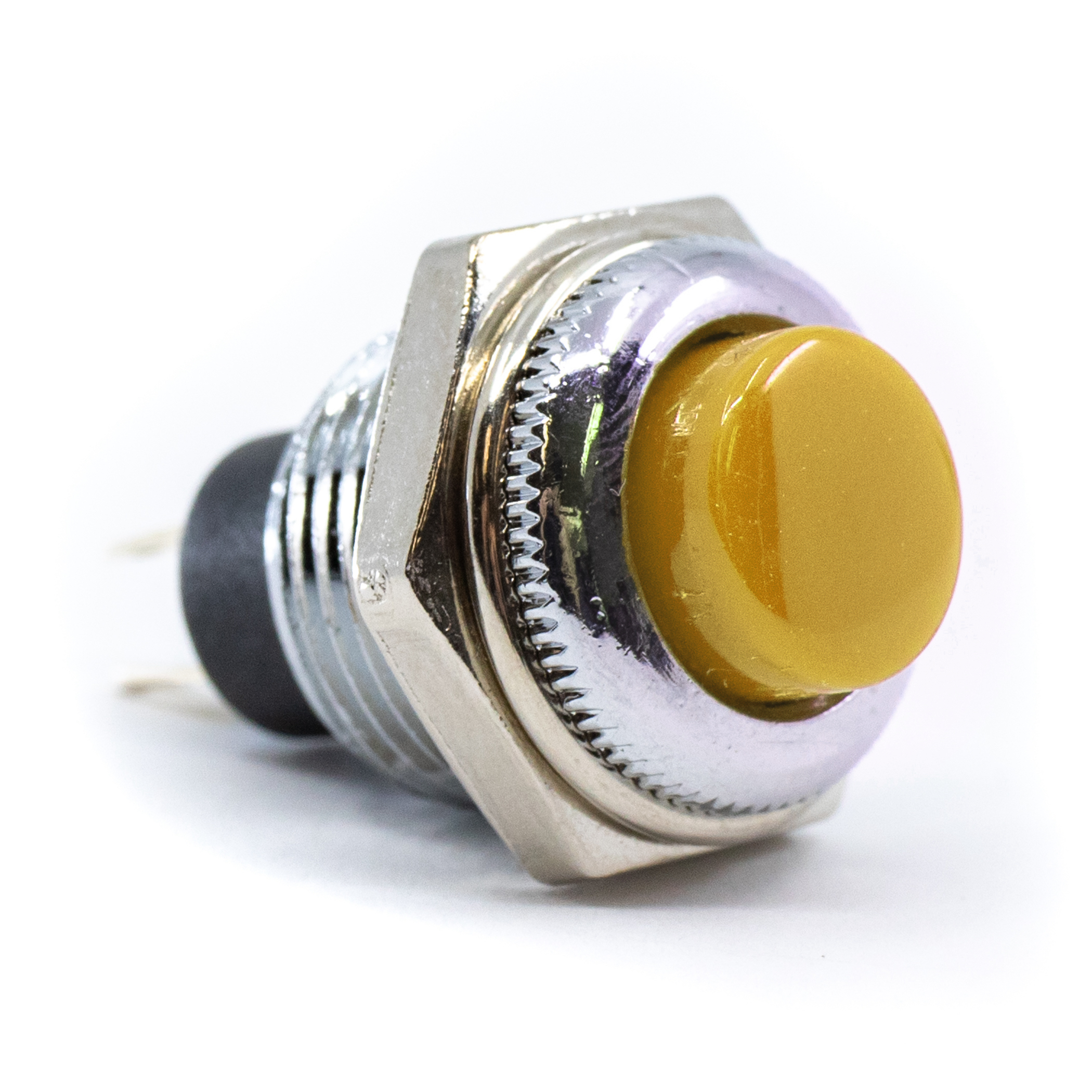

RP3502MAYEL
PUSHBUTTON, 3A, 120VAC, SPST, Off-(On), Panel Mount, Front
- Series Name RP3502
- PackagingBulk
- Current Rating3A
- Voltage Rating120VAC
- CircuitSPST
- FunctionOff-(On)
- Mounting TypePanel Mount, Front
- Termination TypeSolder
- Actuator TypeRound, Button
- Actuator ColorYellow
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Panel Cutout DimensionsCircular - 12.7mm Dia.
- Operating Temperature-20°C to 65°C
Support for RP3502MAYEL
Not the product you are looking for? Configure your product
