RBW2 Series Sealed, Illuminated, Power Rocker Switch

RBW2 Series Sealed, Illuminated, Power Rocker Switch Wire Leads & Connectors Available

RBW2 Series: RBW2ABLKRILEF1

Categories: ROCKER

  • document Series Data Sheet
  • document Spec Sheet (2D)

RoHS Compliant REACH Compliant UL Certified ENEC Certified

RBW2 Series Sealed, Illuminated, Power Rocker Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

RBW2ABLKRILEF1

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for RBW2ABLKRILEF1

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the RBW2ABLKRILEF1 from our authorized distributors.

In-Stock Distributors

ROCKER, 16A, 125VAC, DPST, Off-On, Panel Mount, Snap-In, Illuminated

Powered by oemsecrets

About RBW2 Series

  • 30mm x 22mm panel cutout;  IP66 rated
  • 16A, 125VAC, 1/3HP; UL, cUL
  • 10A, 250VAC; VDE
  • DPST or DPDT; latching function
  • Panel mount snap-in design
  • Quick connect – 0.250″, or wire leads termination
  • Full illumination or non-illuminated options
  • Six actuator marking options
  • Neon bulb, incandescent, or no lamp illumination options
  • Multiple illumination voltage options
  • -20°C to 85°C operating temperature

RBW2 Series Markets

Food Industry

Product Specifications

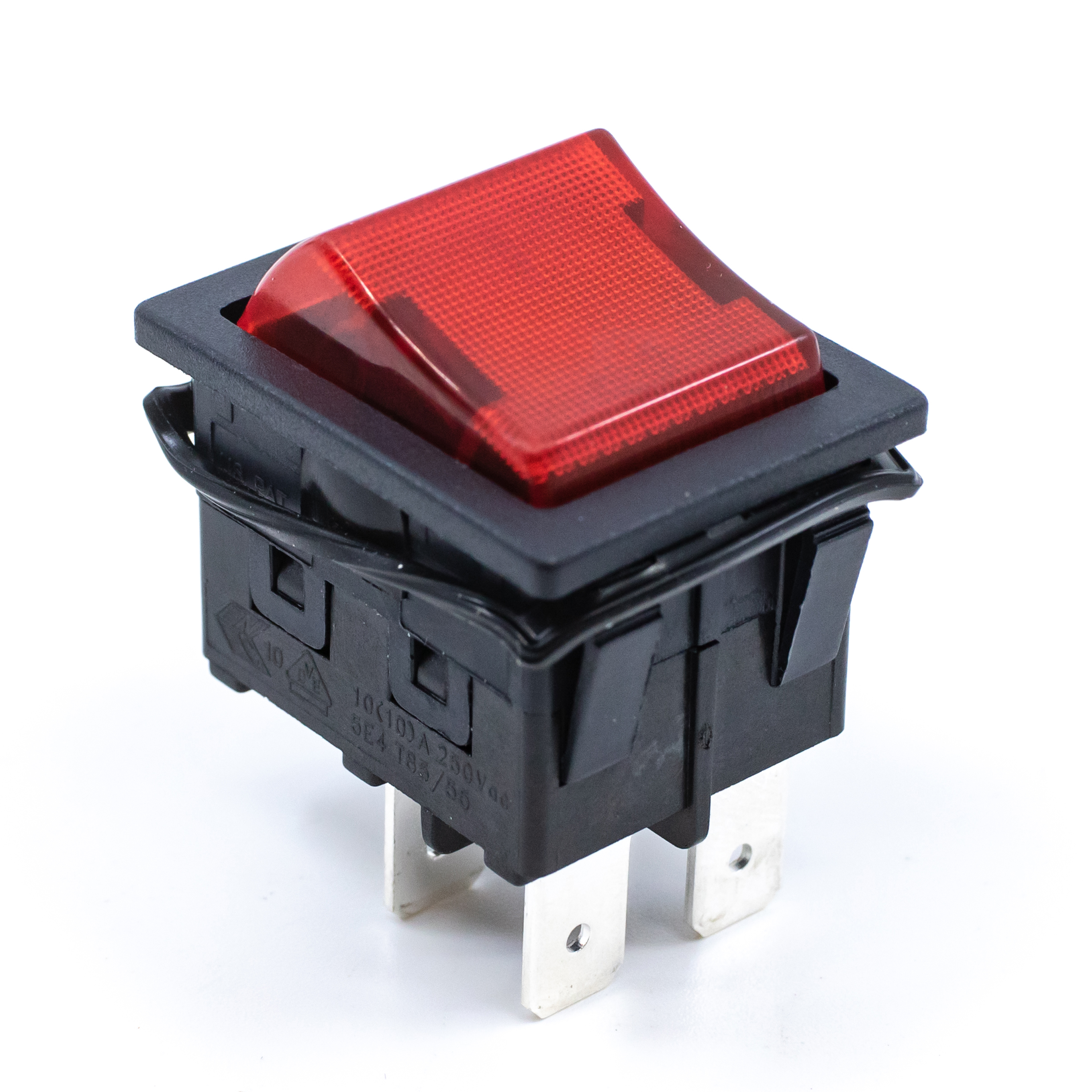

RBW2ABLKRILEF1

ROCKER, 16A, 125VAC, DPST, Off-On, Panel Mount, Snap-In, Illuminated

  • Series Name RBW2
  • PackagingBulk
  • Current Rating16A
  • Voltage Rating125VAC
  • CircuitDPST
  • FunctionOff-On
  • Mounting TypePanel Mount, Snap-In
  • Termination TypeQuick Connect - 0.250"
  • Actuator TypeConcave (Curved) - Illuminated
  • Actuator ColorRed
  • Illumination StyleFull
  • Illumination ColorLED, Red
  • Illumination Voltage125VAC
  • Ingress ProtectionIP66
  • Panel Cutout DimensionsRectangular - 30mm x 22mm
  • Operating Temperature-20°C to 85°C
