RB5 Series Sealed, Illuminated, Power Rocker Switch
Stock Check for RB54111100
Not the product you are looking for? Configure your product
ROCKER, 16A, 125VAC, DPST, On-Off, Panel Mount, Snap-In
About RB5 Series
- 30.2mm x 22mm panel cutout
- Up to 25A, 125VAC; UL, ENEC;Â IP67 rated
- DPST or DPDT; momentary or latching function
- Panel mount snap-in design
- Quick connect – 0.250″, or wire leads termination
- illuminated, dual illuminated, or non-illuminated options
- Eight actuator marking options
- Multiple housing and actuator color options
- Many illumination color and voltage options
RB5 Series Markets
Product Specifications

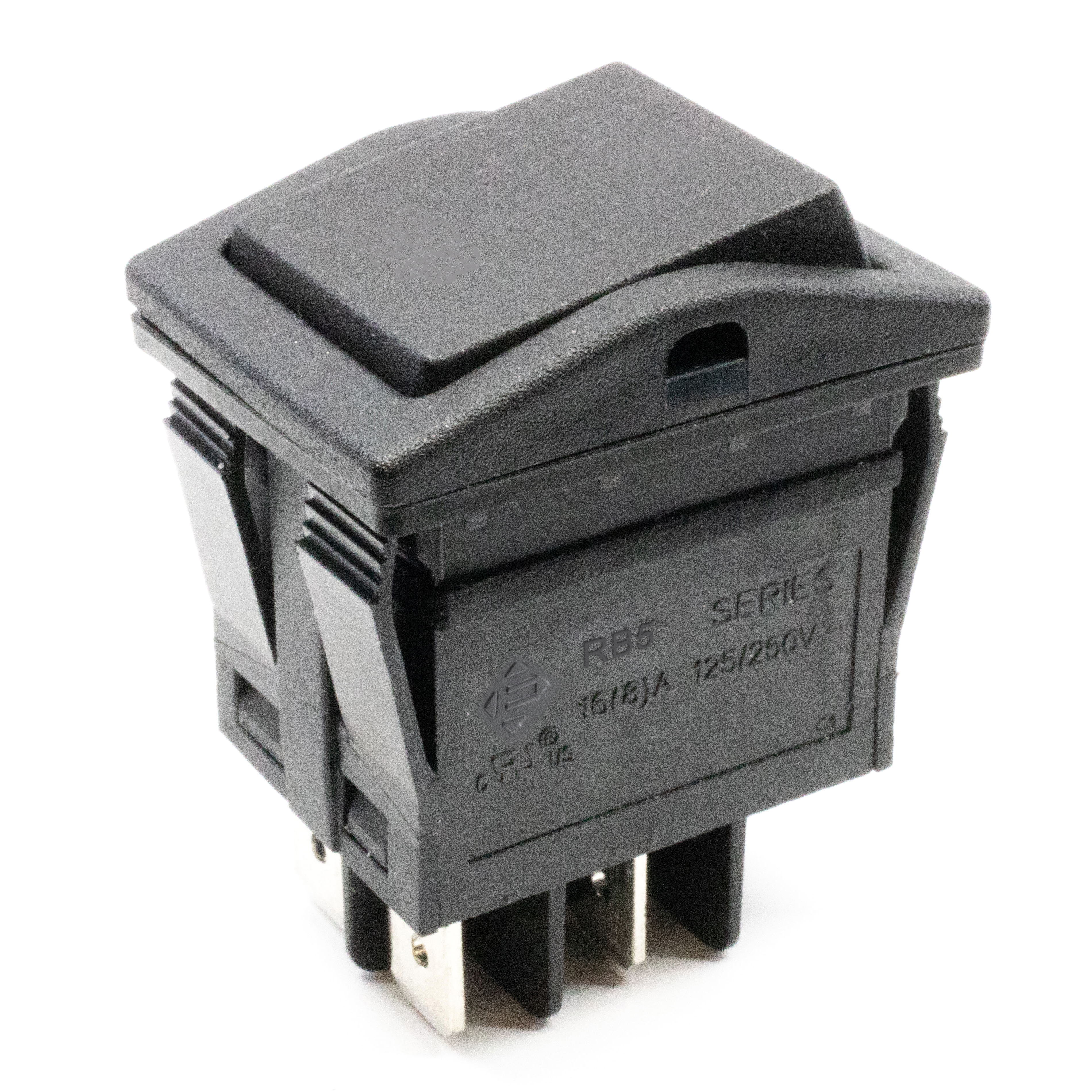

RB54111100
ROCKER, 16A, 125VAC, DPST, On-Off, Panel Mount, Snap-In
- Series Name RB5
- PackagingBulk
- Current Rating16A
- Voltage Rating125VAC
- CircuitDPST
- FunctionOn-Off
- Mounting TypePanel Mount, Snap-In
- Termination TypeQuick Connect - 0.250
- Actuator TypeFlat
- Actuator ColorBlack
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Ingress ProtectionIP67
- Panel Cutout DimensionsRectangular - 30.2mm x 22mm
- Operating Temperature0°C to 55°C
