Read MoreRB2 Series Illuminated, Power Rocker Switch with PVC Cap

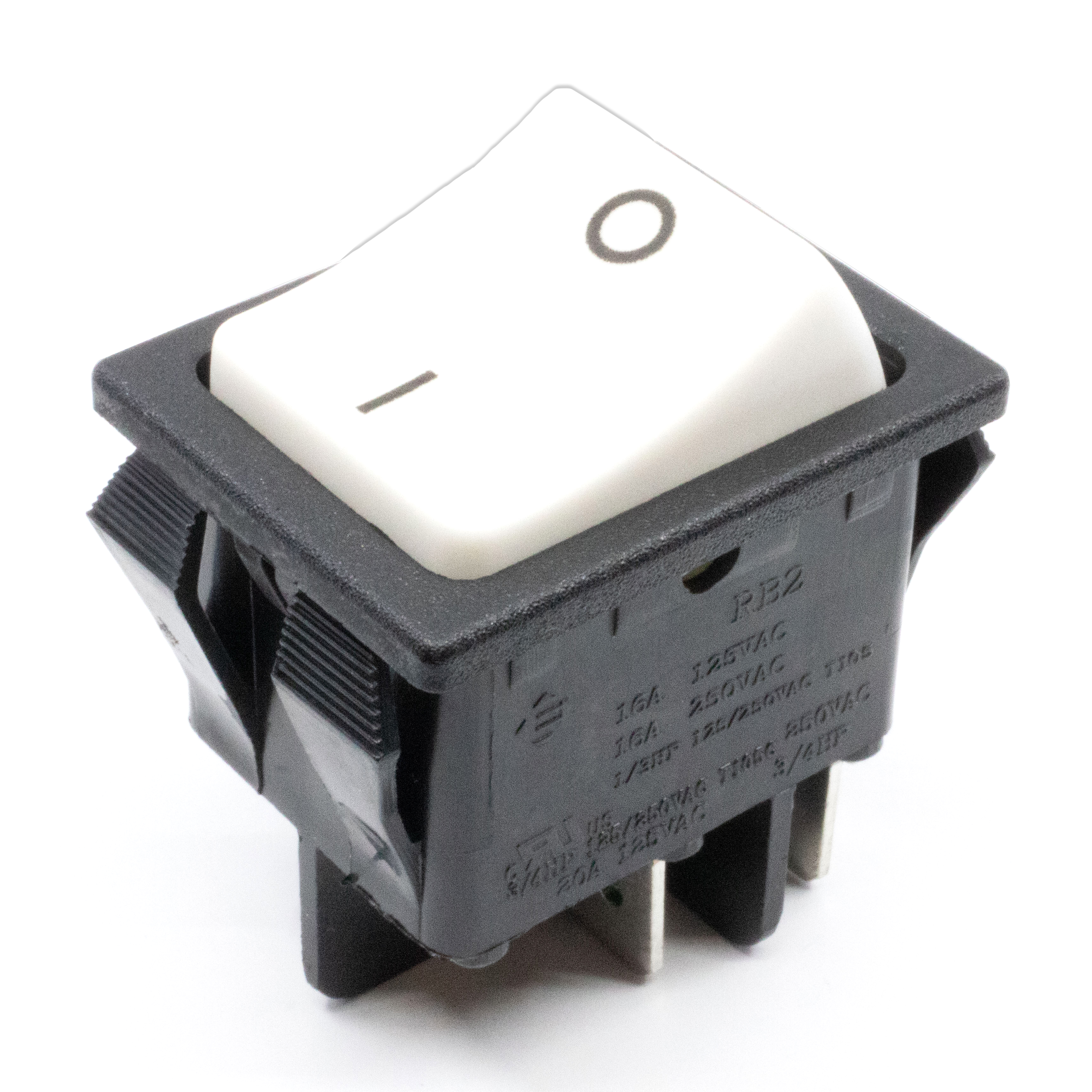

RB2 Series Illuminated, Power Rocker Switch with PVC Cap
Stock Check for RB242D1211
Not the product you are looking for? Configure your product
ROCKER, 20A, 125VAC, DPST, Off-On, Panel Mount, Snap-In
About RB2 Series
- IP54 with PVC cap
- 30mm x 22mm panel cutout
- Up to 20A, 125VAC, 3/4HP; UL, cUL
- DPST or DPDT; momentary or latching function
- Panel mount snap-in design
- Quick connect – 0.250″, or wire leads termination
- Full illumination, dot illumination, or non-illuminated options
- Multiple housing and actuator color options
- Eight actuator marking options
- Many illumination color and voltage options
- -20°C to 65°C operating temperature
RB2 Series Markets
Product Specifications
RB242D1211
ROCKER, 20A, 125VAC, DPST, Off-On, Panel Mount, Snap-In
- Series Name RB2
- PackagingBulk
- Current Rating20A
- Voltage Rating125VAC
- CircuitDPST
- FunctionOff-On
- Mounting TypePanel Mount, Snap-In
- Termination TypeQuick Connect - 0.250"
- Actuator TypeConcave (Curved)
- Actuator ColorWhite
- Illumination Style-
- Illumination Color-
- MarkingI/O Vertical
- Panel Cutout DimensionsRectangular - 30mm x 22mm
- Operating Temperature-20°C to 65°C
Support for RB242D1211
Not the product you are looking for? Configure your product
