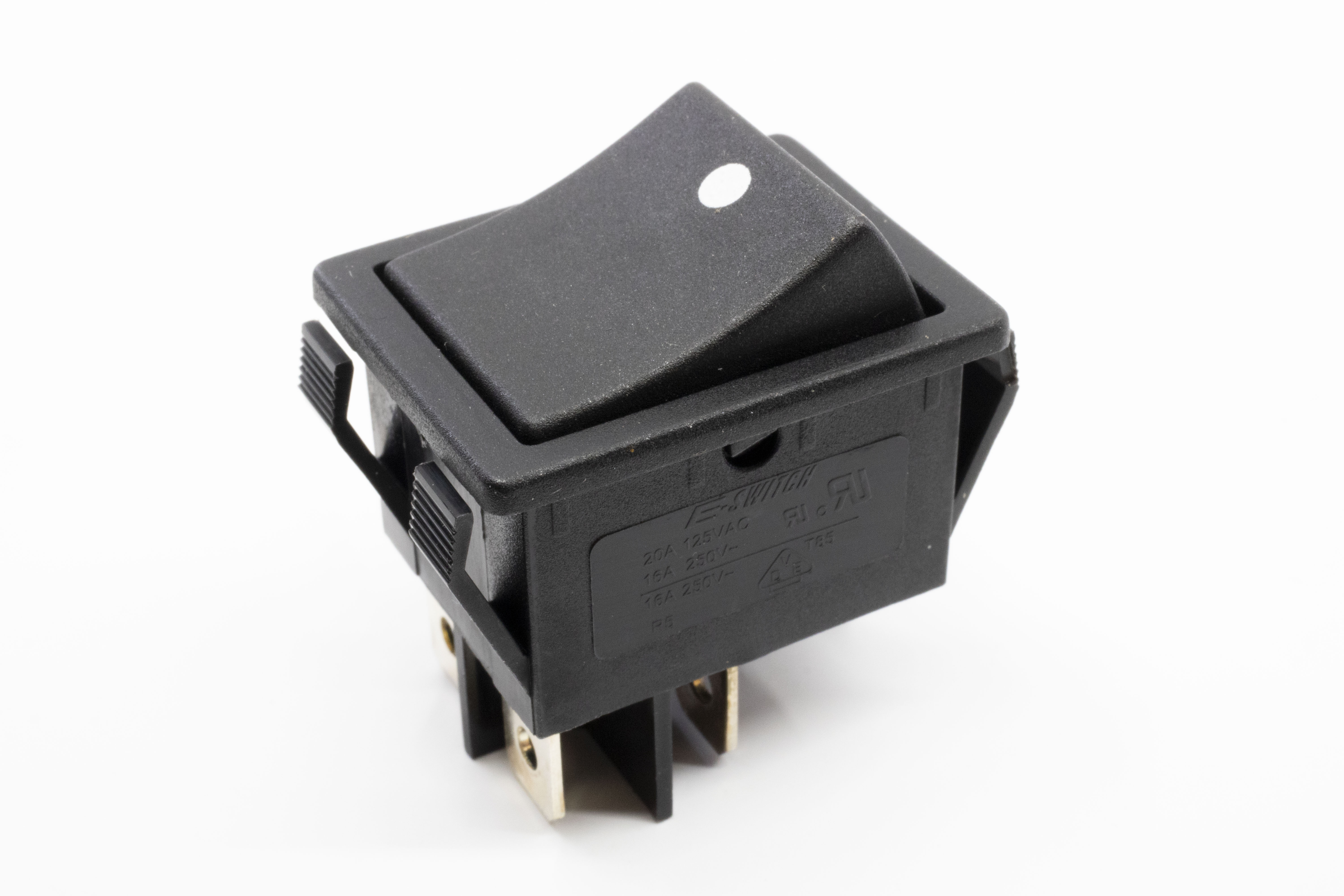

R5 Series Illuminated, Power Rocker Switch

R5 Series Illuminated, Power Rocker Switch Wire Leads & Connectors Available

R5 Series: R5BBLKGRNEF3

Categories: ROCKER

  • document Series Data Sheet
  • document Spec Sheet (2D)

RoHS Compliant REACH Compliant UL Certified ENEC Certified

R5 Series Illuminated, Power Rocker Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

R5BBLKGRNEF3

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for R5BBLKGRNEF3

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the R5BBLKGRNEF3 from our authorized distributors.

In-Stock Distributors

ROCKER, 20A, 125VAC, DPST, On-Off, Panel Mount, Snap-In, Illuminated

Powered by oemsecrets

About R5 Series

  • 30mm x 22mm panel cutout
  • 20A, 125VAC, 3/4HP; UL, cUL; 16A, 250VAC, 1HP; VDE  (circuits A, B, C, E, F, H)
  • 15A, 125VAC; UL, cUL; 10A, 250VAC; VDE  (circuits D, G, I)
  • DPST or DPDT, momentary or latching function
  • Panel mount snap-in design
  • Quick connect – 0.250″ termination
  • Full illumination or non-illuminated options
  • Eight actuator marking options
  • LED, neon bulb, or no lamp illumination options
  • Many illumination voltage options
  • -20°C to 55°C operating temperature

E-Switch Featured Switch: R5 Series Rocker Switch

R5 Series Markets

Appliance

Product Specifications

R5BBLKGRNEF3

ROCKER, 20A, 125VAC, DPST, On-Off, Panel Mount, Snap-In, Illuminated

  • Series Name R5
  • PackagingBulk
  • Current Rating20A
  • Voltage Rating125VAC
  • CircuitDPST
  • FunctionOn-Off
  • Mounting TypePanel Mount, Snap-In
  • Termination TypeQuick Connect - 0.250"
  • Actuator TypeConcave (Curved) - Illuminated
  • Actuator ColorGreen
  • Illumination ColorLED, Green
  • Illumination Voltage12VDC
  • Panel Cutout DimensionsRectangular - 30mm x 22mm
  • Operating Temperature-20°C to 55°C

Support for R5BBLKGRNEF3

Not the product you are looking for? Configure your product

Product Inquiry Request Sample
