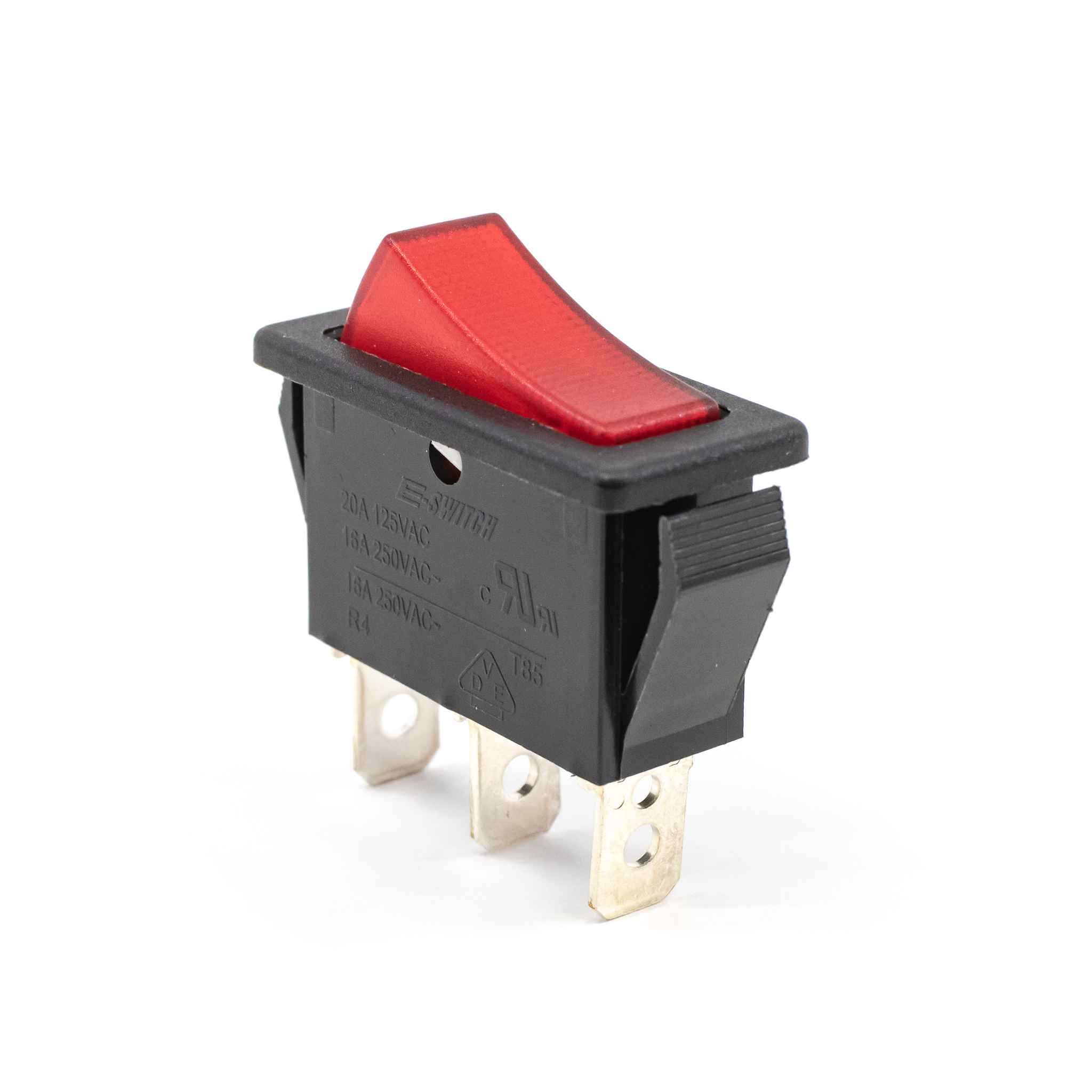

R4 Series Illuminated, Power Rocker Switch

R4 Series Illuminated, Power Rocker Switch Wire Leads & Connectors Available

R4 Series: R4JBLKRILEF1

Categories: ROCKER

  • document Series Data Sheet
  • document Spec Sheet (2D)

RoHS Compliant REACH Compliant UL Certified ENEC Certified

R4 Series Illuminated, Power Rocker Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

R4JBLKRILEF1

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for R4JBLKRILEF1

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the R4JBLKRILEF1 from our authorized distributors.

In-Stock Distributors

ROCKER, 20A, 125VAC, SPST, On-Off, Panel Mount, Snap-In, Illuminated

Powered by oemsecrets

About R4 Series

  • 30mm x 11mm panel cutout
  • 20A, 125VAC; UL, cUL; 16A, 250VAC; VDE  (circuits A, B, C, E, F, H, J)
  • 15A, 125VAC; UL, cUL; 10A, 250VAC; VDE  (circuits D, G, I)
  • SPST or SPDT, momentary or latching function
  • Panel mount snap-in design
  • Quick connect – 0.250″ termination
  • Full illumination, dot illumination, or non-illuminated options
  • Eleven actuator marking options
  • LED, neon bulb, or no lamp illumination options
  • Many illumination voltage options
  • -20°C to 55°C operating temperature

E-Switch Featured Switch: R4 Series High Current Rocker Switch

R4 Series Markets

Industrial

Product Specifications

R4JBLKRILEF1

ROCKER, 20A, 125VAC, SPST, On-Off, Panel Mount, Snap-In, Illuminated

  • Series Name R4
  • PackagingBulk
  • Current Rating20A
  • Voltage Rating125VAC
  • CircuitSPST
  • FunctionOn-Off
  • Mounting TypePanel Mount, Snap-In
  • Termination TypeQuick Connect - 0.250"
  • Actuator TypeConcave (Curved) - Illuminated
  • Actuator ColorRed
  • Illumination StyleFull
  • Illumination ColorLED, Red
  • Illumination Voltage125VAC
  • Panel Cutout DimensionsRectangular - 30mm x 11mm
  • Operating Temperature-20°C to 55°C

Support for R4JBLKRILEF1

Not the product you are looking for? Configure your product

Product Inquiry Request Sample
