R1973 Series Illuminated, Power Rocker Switch

R1973 Series Illuminated, Power Rocker Switch Wire Leads & Connectors Available

R1973 Series: R1973BBLKBLKFR0

Categories: ROCKER

  • document Series Data Sheet
  • document Spec Sheet (2D)

RoHS Compliant REACH Compliant UL Certified ENEC Certified

R1973 Series Illuminated, Power Rocker Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

R1973BBLKBLKFR0

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for R1973BBLKBLKFR0

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the R1973BBLKBLKFR0 from our authorized distributors.

In-Stock Distributors

ROCKER, 9A, 125VAC, DPST, On-Off, Panel Mount, Snap-In, Right Angle

Powered by oemsecrets

About R1973 Series

  • 19.2mm x 13mm panel cutout
  • 9A, 125VAC; UL, cUL; 6A, 250VAC; UL, cUL, VDE
  • SPST or DPST, momentary or latching function
  • Panel mount snap-in or panel mount snap-in right angle design
  • Quick connect or PC pin right angle termination options
  • Full illumination or non-illuminated options
  • Six actuator marking options
  • LED, neon bulb, or no lamp illumination options
  • Many illumination voltage options
  • -30°C to 65°C operating temperature

Rocker Switches: E-Switch R1973 series

R1973 Series Markets

Audio Visual

Product Specifications

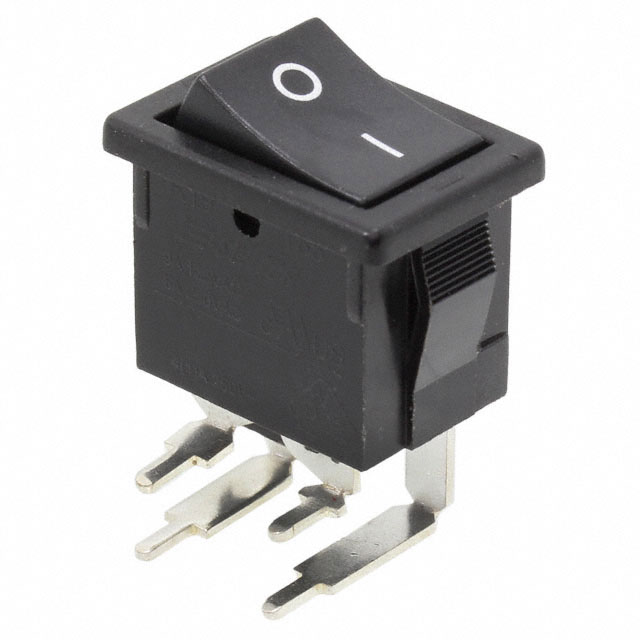

R1973BBLKBLKFR0

ROCKER, 9A, 125VAC, DPST, On-Off, Panel Mount, Snap-In, Right Angle

  • Series Name R1973
  • PackagingBulk
  • Current Rating9A
  • Voltage Rating125VAC
  • CircuitDPST
  • FunctionOn-Off
  • Mounting TypePanel Mount, Snap-In, Right Angle
  • Termination TypePC Pin
  • Actuator TypeConcave (Curved)
  • Actuator ColorBlack
  • Illumination Style-
  • Illumination Color-
  • MarkingI/O Vertical
  • Panel Cutout DimensionsRectangular - 19.2mm x 13mm
  • Operating Temperature-30°C to 65°C

Support for R1973BBLKBLKFR0

Not the product you are looking for? Configure your product

Product Inquiry Request Sample
