Read MorePVT4 Series Illuminated, Tactile Response Anti-Vandal Switch
PVT4 Series Illuminated, Tactile Response Anti-Vandal Switch
Stock Check for PVT4FW4SS304
Not the product you are looking for? Configure your product
ANTI-VANDAL, 50mA, 24VDC, SPST, Off-(On), Panel Mount, Front, Illuminated
About PVT4 Series
- 19mm panel cutout
- 50mA, 24VDC;Â IP65
- Crisp tactile response; 0.5mm travel
- SPST circuit; momentary function
- Solder or wire leads 300mm long termination
- Flat actuator
- Stainless steel or black anodized finish
- Illuminated ring
- Many LED illumination color options
- Many illumination voltage options
- 500,000 cycles electrical life
- -40°C to 85°C operating temperature
PVT4 Series Markets
Product Specifications

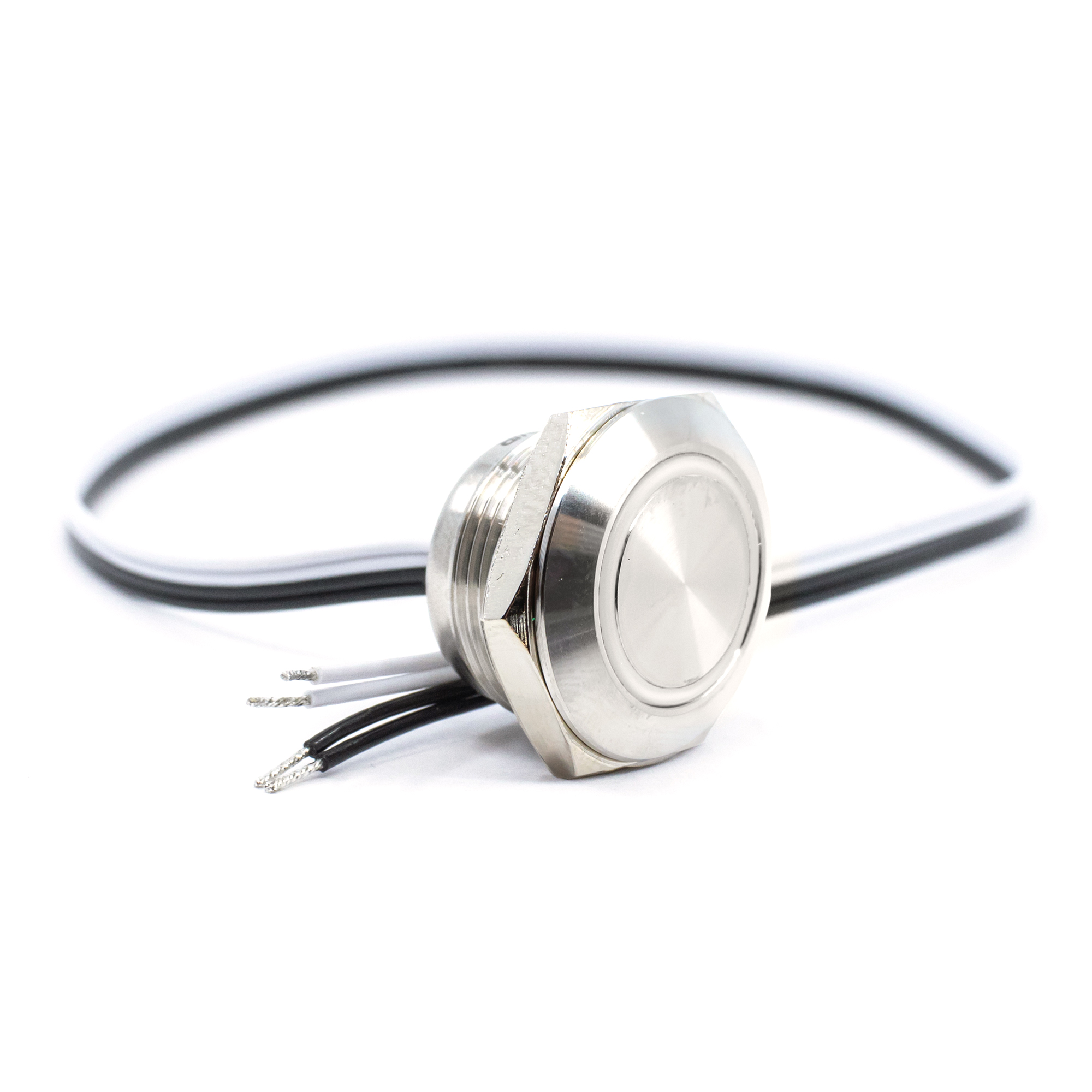

PVT4FW4SS304
ANTI-VANDAL, 50mA, 24VDC, SPST, Off-(On), Panel Mount, Front, Illuminated
- Series Name PVT4
- PackagingBulk
- Current Rating50mA
- Voltage Rating24VDC
- CircuitSPST
- FunctionOff-(On)
- Mounting TypePanel Mount, Front
- Termination TypeWire Leads
- Actuator TypeRound, Button, Flush
- Actuator ColorSilver
- Illumination StyleRing
- Illumination ColorLED, White
- Illumination Voltage12VDC
- Ingress ProtectionIP65
- Panel Cutout DimensionsCircular - 19mm Dia.
- Operating Temperature-40°C to 85°C
Support for PVT4FW4SS304
Not the product you are looking for? Configure your product
