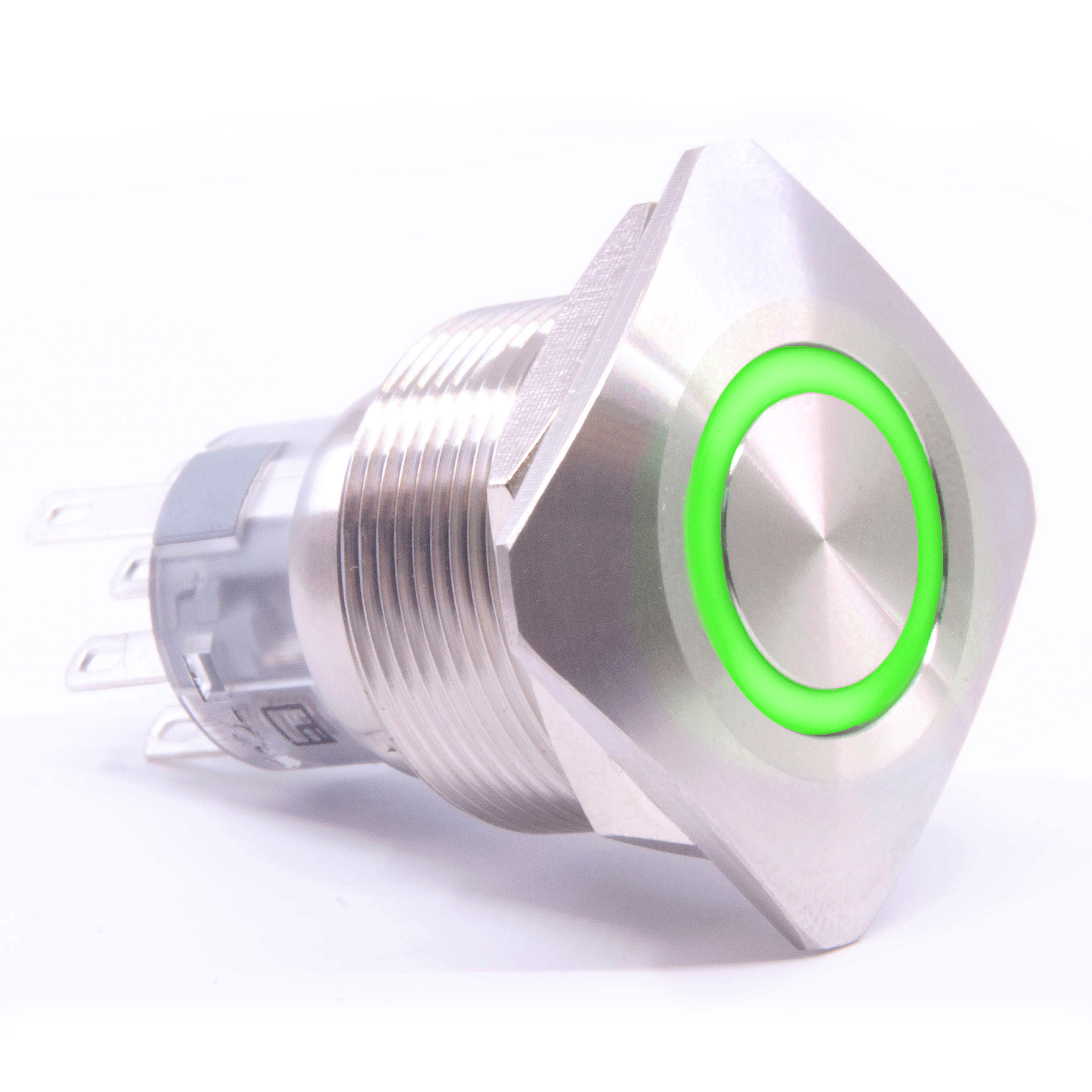

PVS7 Series Illuminated Anti-Vandal Switch

PVS7 Series Illuminated Anti-Vandal Switch Wire Leads & Connectors Available

PVS7 Series: PVS7F2BSS-335

Categories: ANTI-VANDAL

RoHS Compliant REACH Compliant

PVS7 Series Illuminated Anti-Vandal Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

PVS7F2BSS-335

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for PVS7F2BSS-335

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the PVS7F2BSS-335 from our authorized distributors.

In-Stock Distributors

ANTI-VANDAL, 2A, 24VDC, SPDT, On-(On), Panel Mount, Front, Illuminated

Powered by oemsecrets

About PVS7 Series

  • 22mm panel cutout
  • 2A, 24VDC;  IP65 rated
  • SPDT or DPDT circuit; latching or momentary function
  • Solder or wire leads 300mm long termination options
  • Square bezel; flat actuator
  • Stainless steel finish
  • Illuminated ring, or non-illuminated
  • Many LED illumination color options including bi-color and RGB
  • Many illumination voltage options
  • Laser etched power symbol option
  • 50,000 cycles electrical life
  • -40°C to 85°C operating temperature

PVS7 Anti Vandal Series - E-Switch

PVS7 Series Markets

Industrial

Product Specifications

PVS7F2BSS-335

ANTI-VANDAL, 2A, 24VDC, SPDT, On-(On), Panel Mount, Front, Illuminated

  • Series Name PVS7
  • PackagingBulk
  • Current Rating2A
  • Voltage Rating24VDC
  • CircuitSPDT
  • FunctionOn-(On)
  • Mounting TypePanel Mount, Front
  • Termination TypeSolder
  • Actuator TypeRound, Button, Flush
  • Actuator ColorSilver
  • Illumination StyleRing
  • Illumination ColorLED, Green
  • Illumination Voltage24VDC
  • Ingress ProtectionIP65
  • Panel Cutout DimensionsCircular - 22mm Dia.
  • Operating Temperature-40°C to 85°C
