Interactive Anti-Vandal Switch Panel Solutions
April 3, 2025 | N/A min read
Select any switch from the panel to browse its data sheet, or continue for detailed specifications, images and purchasing options.
Read MorePVL Series Illuminated Pilot Indicator

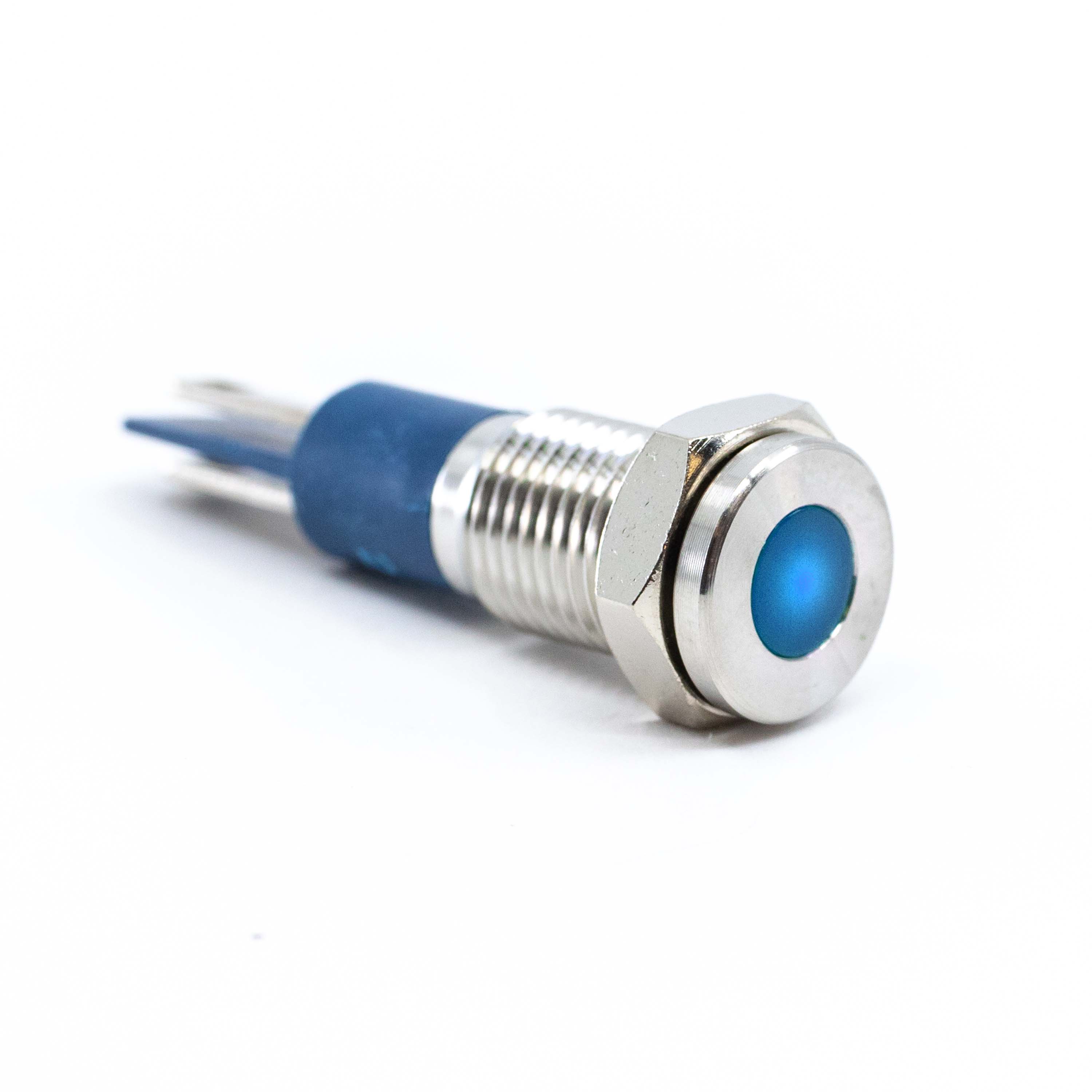

PVL Series Illuminated Pilot Indicator
Stock Check for PVL08FLS41
Not the product you are looking for? Configure your product
ANTI-VANDAL, No Internal Switch Contacts, Pilot Indicator, Panel Mount, Front, Illuminated
About PVL Series
- 6mm to 25mm panel cutout options
- Pilot lamp indicator light;Â IP67
- Solder, screw, or wire leads (150mm long) termination
- Flat or domed actuator
- Stainless steel or black anodized finish options
- Illuminated dot
- Many LED illumination color options
- Many illumination voltage options
- 40,000 hours nominal lamp life
- -40°C to 85°C operating temperature
PVL Series Markets
Product Specifications
PVL08FLS41
ANTI-VANDAL, No Internal Switch Contacts, Pilot Indicator, Panel Mount, Front, Illuminated
- Series Name PVL
- PackagingBulk
- CircuitNo Internal Switch Contacts
- FunctionPilot Indicator
- Mounting TypePanel Mount, Front
- Termination TypeSolder
- Illumination StyleRound with Flat Top
- Illumination ColorLED, Blue
- Illumination Voltage2.8VDC
- Ingress ProtectionIP67
- Panel Cutout DimensionsCircular - 8mm Dia.
- Operating Temperature-40°C to 85°C
Support for PVL08FLS41
Not the product you are looking for? Configure your product
