Interactive Anti-Vandal Switch Panel Solutions
April 3, 2025 | N/A min read
Select any switch from the panel to browse its data sheet, or continue for detailed specifications, images and purchasing options.
Read MorePVA6 Series Illuminated, Long Life Anti-Vandal Switch
PVA6 Series Illuminated, Long Life Anti-Vandal Switch
Stock Check for PVA6LRPW1241
Not the product you are looking for? Configure your product
ANTI-VANDAL, 2A, 36VDC, SPST, Off-On, Panel Mount, Front, Illuminated
About PVA6 Series
- 16mm panel cutout
- 2A, 36VDC;Â IP67
- SPST; latching (PVA6L), or momentary (PVA6) function
- Solder, wire leads 500mm long, or molded back with wire leads 500mm long termination
- Rounded, high flat, or flat bezel/actuator options
- Stainless steel, black anodized, or clear anodized finish options
- Illuminated ring, or ring and power symbol options
- Many LED illumination color options including bi-color options
- Up to 200,000 cycles electrical life
- -20°C to 70°C operating temperature
PVA6 Series Markets
Product Specifications

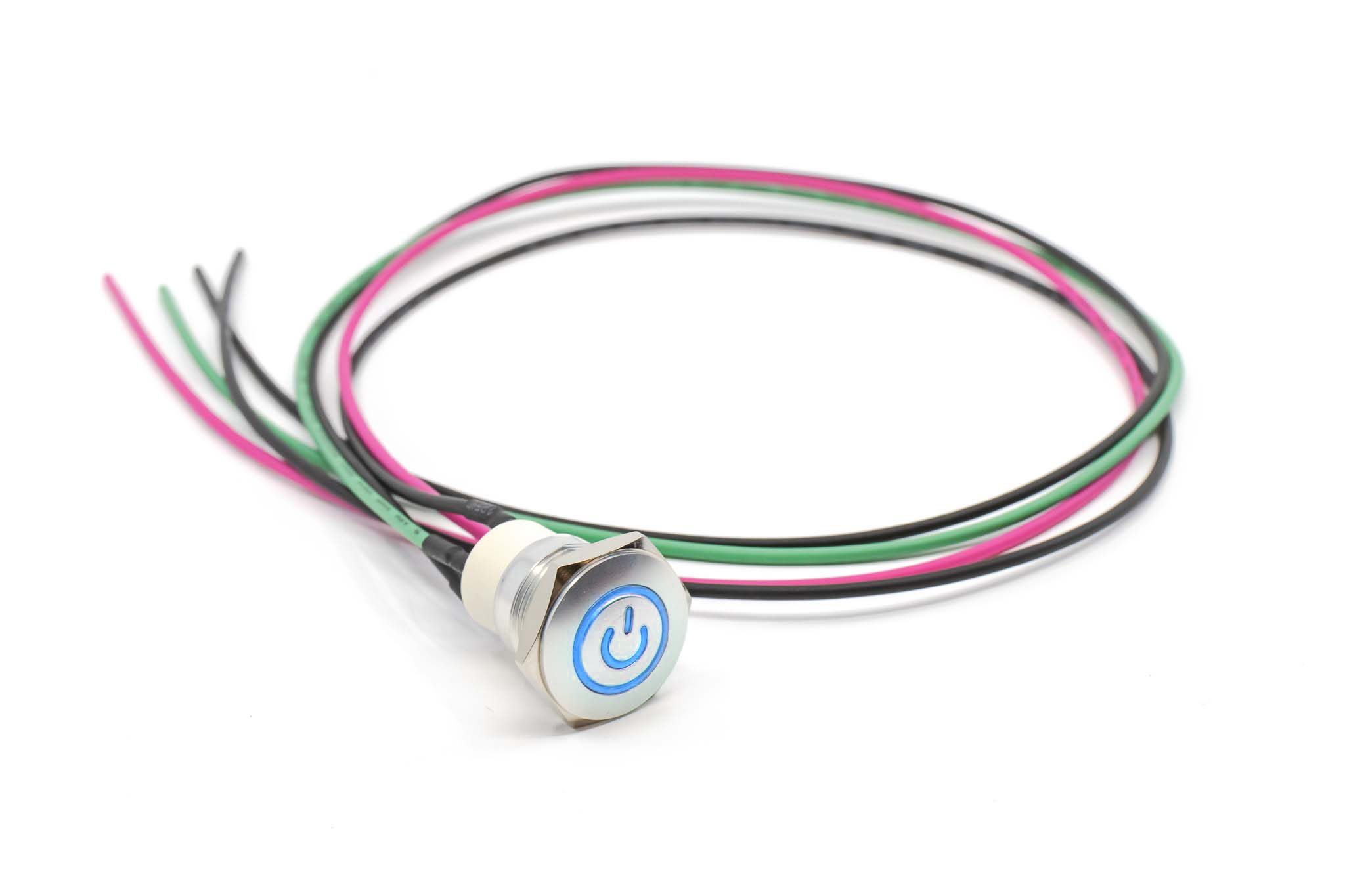

PVA6LRPW1241
ANTI-VANDAL, 2A, 36VDC, SPST, Off-On, Panel Mount, Front, Illuminated
- Series Name PVA6
- PackagingBulk
- Current Rating2A
- Voltage Rating36VDC
- CircuitSPST
- FunctionOff-On
- Mounting TypePanel Mount, Front
- Termination TypeWire Leads
- Contact MaterialGold over Silver
- Actuator TypeRound, Button, Domed
- Actuator ColorSilver
- Illumination StyleRing/Power Symbol
- Illumination ColorLED, Blue
- Illumination Voltage3VDC
- Ingress ProtectionIP67
- Panel Cutout DimensionsCircular - 16mm Dia.
- Operating Temperature-20°C to 70°C
Support for PVA6LRPW1241
Not the product you are looking for? Configure your product
