Interactive Anti-Vandal Switch Panel Solutions
April 3, 2025 | N/A min read
Select any switch from the panel to browse its data sheet, or continue for detailed specifications, images and purchasing options.
Read MorePV9 Series Illuminated Anti-Vandal Switch
PV9 Series Illuminated Anti-Vandal Switch
Stock Check for PV9FWT0SS-215
Not the product you are looking for? Configure your product
ANTI-VANDAL, 2A, 48VDC, DPST-NO/NC, Off-On, On-Off, Panel Mount, Front, Illuminated
About PV9 Series
- 28mm panel cutout
- 2A, 48VDC;Â IP65 rated
- DPST-NO/NC or 4PST-2NO/2NC circuit; latching or momentary
- Solder or wire leads 300mm long termination options
- Flat actuator
- Stainless steel or black anodized finish
- Illuminated dot, ring, or non-illuminated options
- Many LED illumination color options including bi-color
- Many illumination voltage options
- 50,000 cycles electrical life
- -35°C to 85°C operating temperature
PV9 Series Markets
Product Specifications

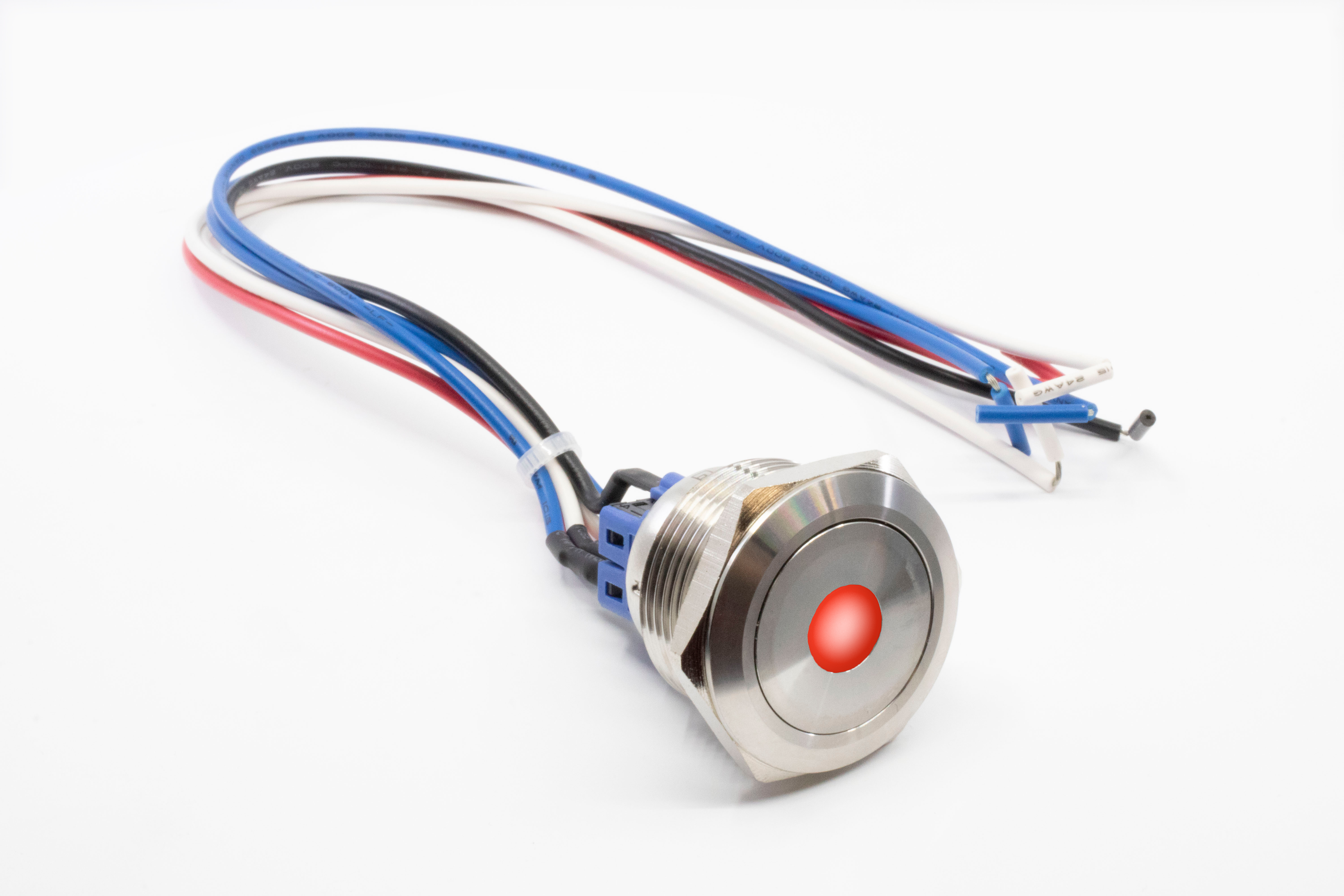

PV9FWT0SS-215
ANTI-VANDAL, 2A, 48VDC, DPST-NO/NC, Off-On, On-Off, Panel Mount, Front, Illuminated
- Series Name PV9
- PackagingBulk
- Current Rating2A
- Voltage Rating48VDC
- CircuitDPST-NO/NC
- FunctionOff-On, On-Off
- Mounting TypePanel Mount, Front
- Termination TypeWire Leads
- Actuator TypeRound, Button, Flush
- Actuator ColorSilver
- Illumination StyleDot
- Illumination ColorLED, Red
- Illumination Voltage24VDC
- Ingress ProtectionIP65
- Panel Cutout DimensionsCircular - 28mm Dia.
- Operating Temperature-35°C to 85°C
Support for PV9FWT0SS-215
Not the product you are looking for? Configure your product
