Select any switch from the panel to browse its data sheet, or continue for detailed specifications, images and purchasing options.
Read MorePV5 Series Long Life Anti-Vandal Switch
PV5 Series Long Life Anti-Vandal Switch
Stock Check for PV5S240SS
Not the product you are looking for? Configure your product
ANTI-VANDAL, 2A, 36VDC, SPST, Off-(On), Panel Mount, Front, Illuminated
About PV5 Series
- 12mm panel cutout
- 2A, 36VDC;Â IP65 rated
- SPST circuit; momentary function
- Solder, screw, or wire leads termination
- Domed or raised actuator
- Nickel, stainless steel, or black anodized body finish
- Numerous actuator finish options
- Non-illuminated
- Silver or gold contact material
- 200,000 cycles electrical life
- -40°C to 85°C operating temperature
PV5 Series Markets
Product Specifications

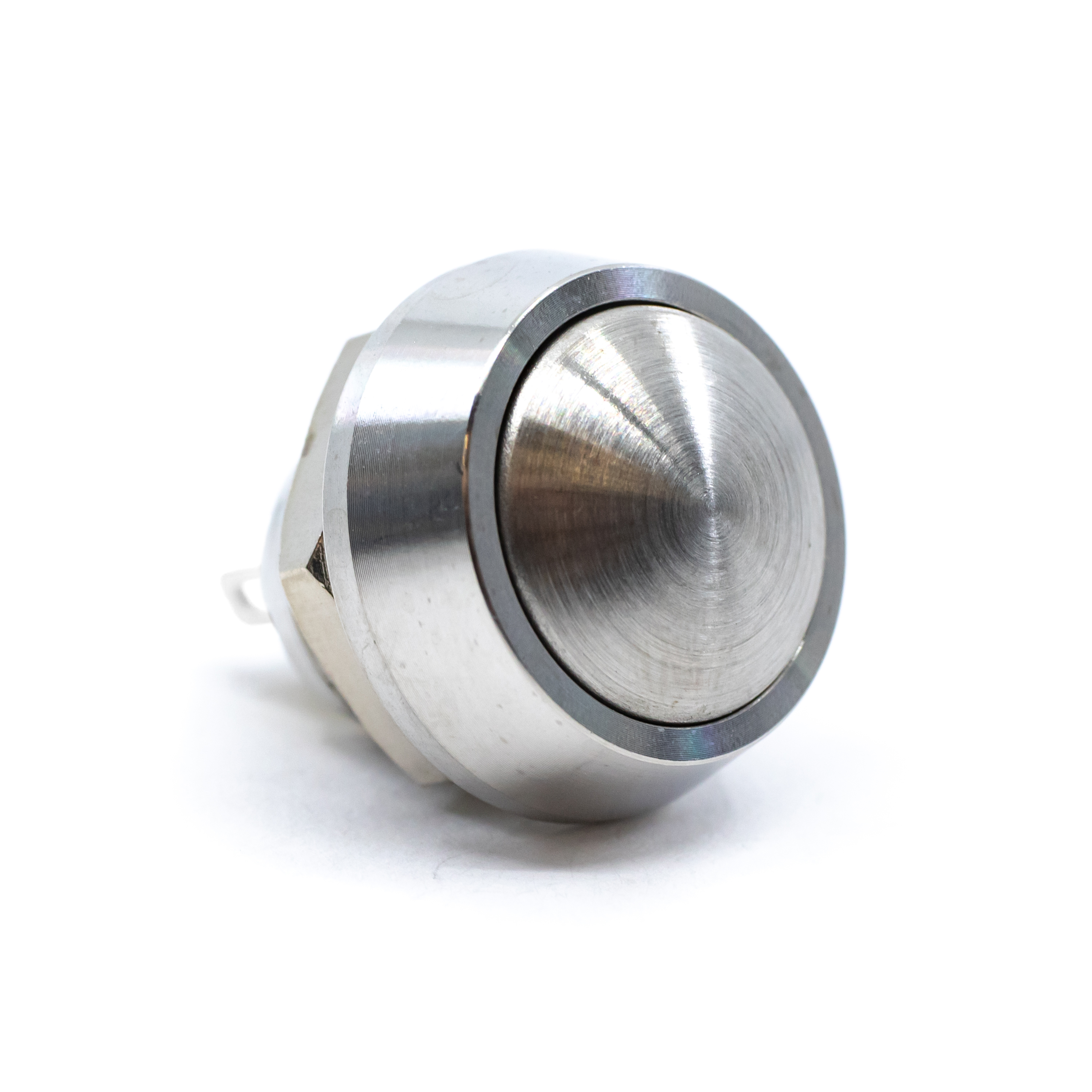

PV5S240SS
ANTI-VANDAL, 2A, 36VDC, SPST, Off-(On), Panel Mount, Front, Illuminated
- Series Name PV5
- PackagingBulk
- Current Rating2A
- Voltage Rating36VDC
- CircuitSPST
- FunctionOff-(On)
- Mounting TypePanel Mount, Front
- Termination TypeSolder
- Actuator TypeRound, Button, Domed
- Actuator ColorSilver
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Ingress ProtectionIP65
- Panel Cutout DimensionsCircular - 12mm Dia.
- Operating Temperature-40°C to 85°C
Support for PV5S240SS
Not the product you are looking for? Configure your product
