Read MorePV3 Series Illuminated Anti-Vandal Switch
PV3 Series Illuminated Anti-Vandal Switch
Stock Check for PV3WF2B011G-341
Not the product you are looking for? Configure your product
ANTI-VANDAL, 2A, 48VDC, SPDT, On-(On), Panel Mount, Front, Illuminated
About PV3 Series
- 16mm panel cutout
- 2A, 48VDC; IP67 or IP40; Long or Short body
- SPDT or DPDT circuit; momentary function
- Solder, or wire leads termination
- Guarded concave, high, or flat actuator
- Nickel, stainless steel, or black anodized body finish
- Numerous actuator finish options
- Illuminated dot, ring, or non-illuminated
- Many LED colors and voltage options
- Silver or gold contact material
- 50,000 cycles electrical life
- -20°C to 55°C operating temperature
PV3 Series Markets
Product Specifications

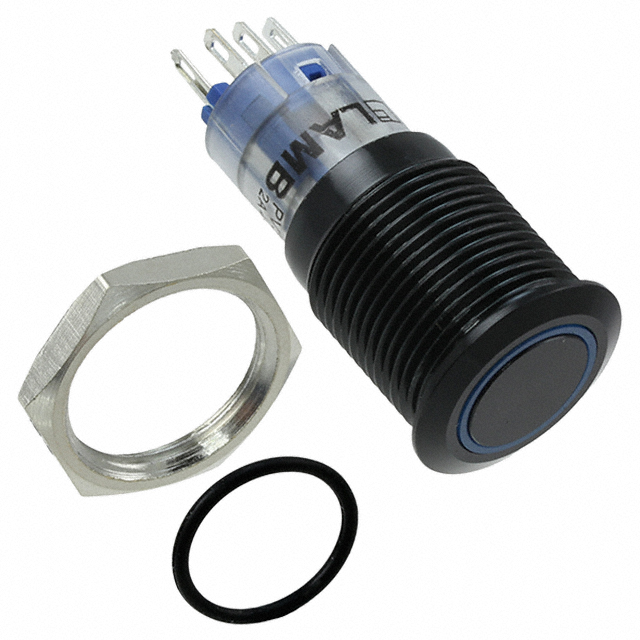

PV3WF2B011G-341
ANTI-VANDAL, 2A, 48VDC, SPDT, On-(On), Panel Mount, Front, Illuminated
- Series Name PV3
- PackagingBulk
- Current Rating2A
- Voltage Rating48VDC
- CircuitSPDT
- FunctionOn-(On)
- Mounting TypePanel Mount, Front
- Termination TypeSolder
- Contact MaterialGold
- Actuator TypeRound, Button, Flush
- Actuator ColorBlack
- Illumination StyleRing
- Illumination ColorLED, Blue
- Illumination Voltage2.8VDC
- Ingress ProtectionIP67
- Panel Cutout DimensionsCircular - 16mm Dia.
- Operating Temperature-20°C to 55°C
