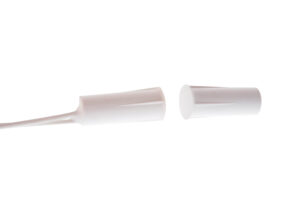

MR1000 Series Detector Switch
Stock Check for MR1000AWA
Not the product you are looking for? Configure your product
DETECTOR, 500mA, 10VAC/VDC, SPST, Off-(On)
About MR1000 Series
- Recessed magnetic or reed type switch
- Two-piece design: one piece contains magnet, other piece contains reed switch
- 500mA, 10V (AC or DC);Â IP67
- SPST-NO circuit; momentary function
- Contact resistance: 150mΩ
- Two contact gap options: 19mm or 25mm
- 9.52mm [0.375 in] press fit
- (2) 18 inch 22AWG wire leads
- Closed gap options
- Intended use is where position detection or sensing is required
MR1000 Series Markets
Product Specifications
MR1000AWA
DETECTOR, 500mA, 10VAC/VDC, SPST, Off-(On)
- Series Name MR1000
- PackagingBulk
- Current Rating500mA
- Voltage Rating10VAC/VDC
- CircuitSPST
- FunctionOff-(On)
- Termination TypeWire Leads
- Actuator TypeMagnet
- Actuator ColorWhite
