E-Switch's low profile switches allow you to save space on your application.
Read MoreKAN Series Low Profile, Half Pitch DIP Switch

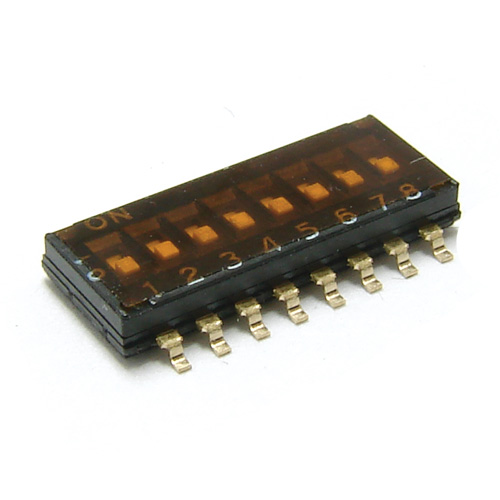

KAN Series Low Profile, Half Pitch DIP Switch
Stock Check for KAN1106R
Not the product you are looking for? Configure your product
DIP, 25mA, 24VDC, SPST, Surface Mount
About KAN Series
- Electrical rating:Â Switch: 25mA @ 24VDC;Â Carry:Â 100mA @ 50VDC
- Surface mount (SMT) design
- 2, 4, 6, 8, or 10 positions; SPST each position
- Gull wing termination
- Recessed actuator; top tape seal option
- 0.050″ (1.27mm) Half pitch
- Low profile
- 2,000 cycle life each circuit
- Gold contact material
- -40°C to 85°C operating temperature
- Tube or tape and reel packaging
KAN Series Markets
Product Specifications
KAN1106R
DIP, 25mA, 24VDC, SPST, Surface Mount
- Series Name KAN
- PackagingTape & Reel
- Current Rating25mA
- Voltage Rating24VDC
- CircuitSPST
- Mounting TypeSurface Mount
- Termination TypeGull Wing
- Contact MaterialGold
- Actuator TypeSlide (Standard)
- Actuator Height1.60mm
- Operating Temperature-40°C to 85°C
- Nbr of Positions6
- Pitch0.050" (1.27mm), Half
